Two new species of Neomolgus (Acari: Trombidiformes: Bdellidae) from Syria

Hamadi, Ali ¹ and Barbar, Ziad ²

¹✉ Department of Plant Protection, Faculty of Agriculture, Al-Baath University, P.O. Box 77, Al-Sham St., Homs, Syria.
²Department of Plant Protection, Faculty of Agriculture, Al-Baath University, P.O. Box 77, Al-Sham St., Homs, Syria.

2024 - Volume: 64 Issue: 3 pages: 777-786

https://doi.org/10.24349/vm66-fciz
ZooBank LSID: AE2F1BC0-22BF-48E2-83D9-56476D168928

---

Original research

Keywords

snout mites Odontoscirinae Bdellinae new record systematics

Abstract

---

Introduction

Members of the family Bdellidae are considered as active running predators of small arthropods such as soft bodied insects, collembolans and mites (Gerson et al., 2003; Hernandes et al., 2016). Currently, the family includes 11 genera and 286 valid species (Hernandes et al., 2016; Barbar and Ueckermann, 2017; Wu et al., 2021a, b). Among these, twelve species belonging to six genera (Bdella, Neomolgus and Spinibdella one of each, two Odontoscirus, three Biscirus, and four Cyta) were reported form Syria. All were reported from Latakia governorates (Soliman and Zaher, 1975; Barbar, 2016; Barbar and Ueckermann, 2017). Worldwide, 55 and 28 species of Bdella and Neomolgus have been described (Hernandes et al., 2016; Wu et al., 2021b). In this paper, Bdella captiosa Atyeo (Atyeo, 1963) was recorded for the first time from Syria, Cyta kreiteri Barbar and Ueckermann was re-observed, and two new species of Neomolgus are described.

Material and methods

Bdellids were collected from leaves of Symphytum officinale L. (Boraginaceae) at Al-Hekr (34°54′27″ N, 36°19′29″ E), Hama governorate, Syria. Specimens were mounted on slides in Hoyer's medium and dried in an oven at 40 °C for one week. Mites were examined using an Olympus® CH20 microscope, identified using Hernandes et al.'s (2016) keys to world Bdellidae. The specimens were compared with original descriptions or re-descriptions of corresponding or related species. Measurements of new species were realized using the scale of a reticle installed on the eyepiece lens. Mite body parts were pictured using a mobile phone camera (13 megapixels) fixed on the eyepiece lens and images were transferred to the professional quality vector graphics software Inkscape® 0.92 installed on a computer for drawing with the aid of the computer's mouse. All measurements are given in micrometers (µm) and the holotype measurements are followed by measurements of the range of paratypes in parentheses. Leg length was measured from the proximal edge of the coxa to the distal end of tarsus excluding claws.

The following abbreviations are consistent with Hernandes et al. (2016): vh = ventral hypostomal setae; ad = adoral seta; DHS = dorsal hypostomal seta; des = dorsal end seta (palp); ves = ventral end seta (palp); at = anterior trichobothrium; pt = posterior trichobothrium; mps = median prodorsal seta; T = trichobothrium (leg); sts = simple tactile seta; asl = attenuate solenidion; bsl = blunt solenidion; pe = peg-like seta. Specimens were deposited in the Arthropod Collection of the Department of Plant Protection, Faculty of Agriculture, Albaath University, Homs, Syria.

Systematics

Family Bdellidae

Subfamily Bdellinae Dugès

Genus Bdella Latreille

Bdella captiosa Atyeo, 1963

One female was collected from S. officinale, 30 September 2023. This is the first report of this species from Syria. It is known from Australia, Hawaii and Iran (Hernandes et al., 2016). It can be distinguished from closely related species by the following characteristics: prodorsal striae between pt setae longitudinal; palpal basifemora and tibiotarsi with 7 and 6 setae respectively; chelicera non-striated; genua I–IV without duplex setae; genu I with 2 solenidia; tibia I with 3 solenidia and tibia II with 2 solenidia (Ateyo, 1963; Ueckermann et al., 2007; Hernandes et al., 2016).

Measurements of the Syrian specimen. Body length (including gnathosoma) 791, body length (excluding gnathosoma) 575; width 278; diameter of anterior lateral eye 23, and posterior lateral eye 21, distance between two lateral eyes 10. Measurements of dorsal setae: at missing, lps 74, mps 69, pt missing, c1 69, c2 missing, d1 69, e1 64, f1 53, f2 58, h1 62, h2 64. Distance between dorsal setae: at–at 106; lps–lps 138; at–lps 38; pt–pt 112; mps–pt 12; mps–mps 83; at–pt 116; at–mps 115; c1–c1 160; c1–c2 81; d1–d1 120; e1–e1 46; f1–f1 46; f2–f2 130; h1–h1 51; c1–d1 78; d1–e1 74; e1–f1 55; f1–h1 53; h1–h2 50. Subcapitulum 216 long, width at base 87, with six pairs of ventral setae; distal pair 42 and proximal 32; two pairs of short adoral setae ad1 12 and ad2 11. Chelicerae 207 long and 51 wide, with two setae, proximal 46 and distal 64; movable and fixed without teeth. Measurements of palp segments as follows: trochanter 13, basifemur 115, telofemur 25, genu 21, tibiotarsus 58, des 161 and ves 150. Measurements of legs I-IV as follows: 428, 398, 499, 572 respectively.

Subfamily Cytinae Grandjean

Genus Cyta von Heyden

Cyta kreiteri Barbar and Ueckermann, 2017

Two females and two males were collected from S. officinale, 30 September 2023. This is the second report of this species from Syria (Barbar and Ueckermann, 2017). It was also reported from Iran (Khosravinejad et al., 2020).

Subfamily Odontoscirinae Grandjean

Genus Neomolgus Oudemans

Neomolgus neoparacapillatus sp. nov. Barbar and Hamadi

ZOOBANK: 815c6ab0-c79f-4f89-a5f9-1ca1027a48f5

(Figures 1−3)

Diagnosis

Subcapitulum with 6 pairs of setae, each chelicera with 20–22 setae, palp basifemur with nine setae, palp tibiotarsus with 17 setae, palp genua 3.3–4.9 the length of palp telofemora, genital plate with eight pairs of setae.

Description

Female (n = 2) — Body length (including gnathosoma) 2725 (2445), body length (excluding gnathosoma) 2000 (1790); width 1000 (1100).

Dorsum ― (Figure 1A). Dorsal idiosoma with broken striae, central region between c1–c1, d1–d1 and e1–e1 with longitudinal and irregular striae. Regions between c1–d1 and d1–e1 with transverse striae. Prodorsum with four eyes, diameter of anterior lateral eye 40 (36), and posterior lateral eye 43 (38), distance between two lateral eyes 96 (96). Dorsal setae smooth. Hysterosomal region with three pairs of cupules (ia, im and ip) at level of setae d1, e1 and f2. Measurements of dorsal setae as follows: c1 50 (50) partially broken, c2 106 (75 partially broken), d1 85 (85) partially broken, e1 115 (106), f1 76 (65), f2 65 (80), h1 100 (82), h2 62 (82). Distance between dorsal setae: at–at 98 (74); pt–pt 215 (175); mps–pt 58 (50); mps–mps 317 (275); at–pt 317 (265); at–mps 325 (275); c1–c1 296 (280); c1–c2 270 (210); d1–d1 284 (300); e1–e1 255 (218); f1–f1 122 (104); f2–f2 342 (368); h1–h1 120 (144); c1–d1 334 (258); d1–e1 245 (240); e1–f1 265 (205); f1–h1 272 (255); h1–h2 92 (110).

Venter ― (Figure 1B) Aggenital region with three pairs of setae (ag1–3) and genital valves each with eight setae (g1–8); ovipositor with 18 setae; anal region with three pairs of smooth setae (ps1–3).

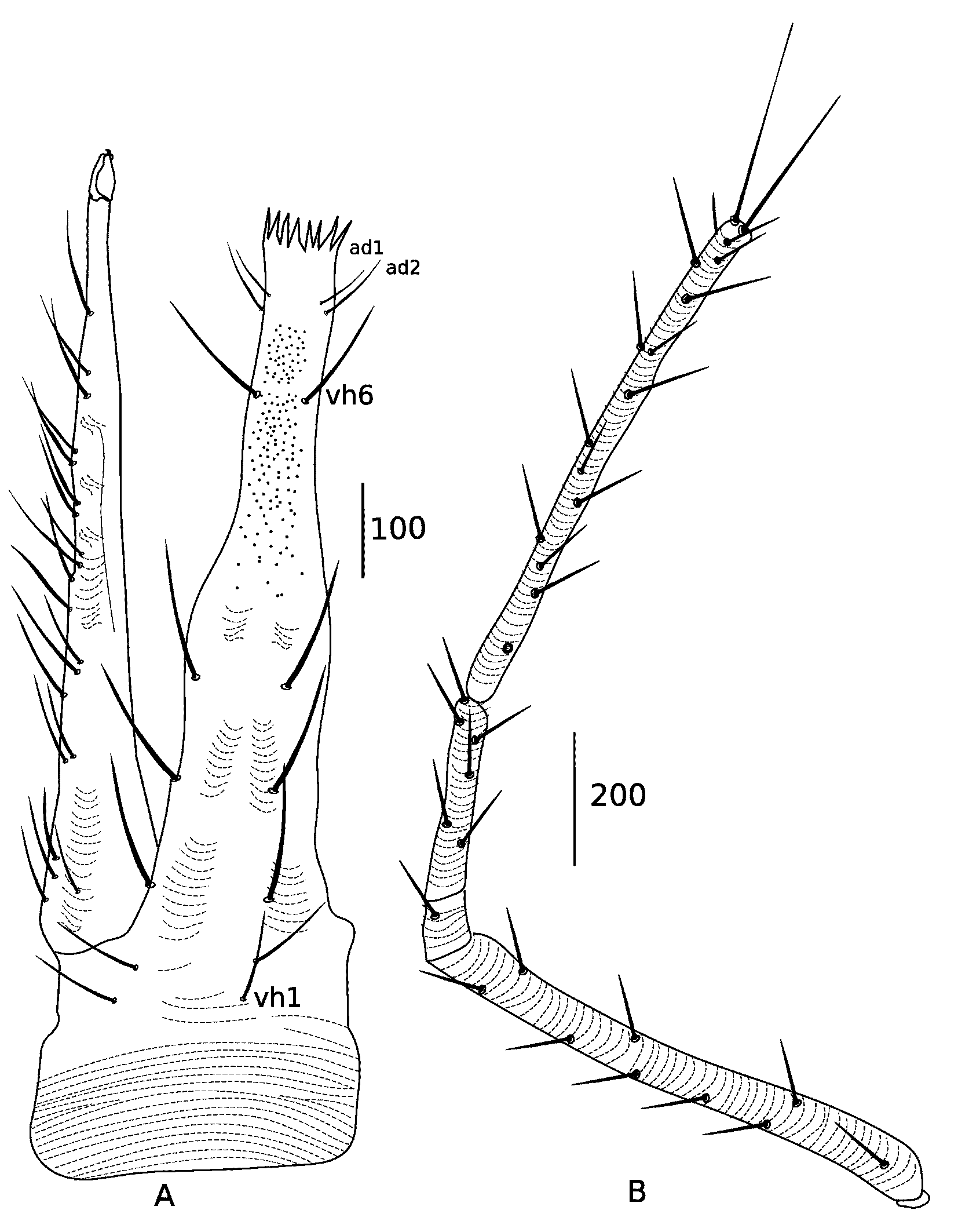

Gnathosoma ― (Figure 2A and B). Subcapitulum with transverse and broken striae, doted in its distal half, 725 (690) long, width at base 276 (270), with six pairs of ventral setae (vh1–6); distal pair 108 (116) and proximal pair 94 (96); two pairs of short adoral setae ad1 30 (29) and ad2 28 (23); dorsal hypostomal setae (DHS) absent. Chelicerae 748 (655) long and 115 (102) wide, with 20–21 (20–22) setae [left and right chelicera respectively], proximal seta 51 (50) and distal seta 110 (115); movable and fixed digits each with one tooth; striation broken (Figure 2A). palp trochanter nude, palp basifemur with nine setae; palp telofemur with one seta, palp genu with six setae; palp tibiotarsus with 17 setae: 14 sts, one terminal solenidion and two long terminal setae, des 255 (258) and ves 230 (245); measurements of palp segments as follows: trochanter 30 (25), basifemur 680 (667), telofemur 50 (75), genu 245 (245), tibiotarsus 700 (612); genua 3.3–4.9 the length of telofemora.

Legs ― (Figure 3). Measurements of legs as follows: leg I 1731 (1667), leg II 1654 (1535), leg III 1791 (1765), leg IV 2284 (2195); setal formulae of leg segments as follows: coxae I–IV 4–4–4–2; trochanters I–IV 1–1–1–1; basifemora I–IV 16–14(15)–11(12)–6; telofemora I–IV 7–7–6–6; genua I–IV 6sts,7asl,2bsl–7sts,6asl–6sts,3asl–6sts,3asl; tibiae I–IV 21sts,19asl,1bsl,1pe,1T–20sts,16asl,1bsl,1T–16sts, 3asl,1bsl–20sts,4asl,1T; tarsi I–IV 48sts,10asl,2bsl,1pe–48sts,3asl,2bsl–46sts,1T–46sts,1T.

Remarks

Neomolgus neoparacapillatus sp. nov. is close to Neomolgus paracapillatus Michocka (Michocka, 1987) by having six pairs of setae on the subcapitulum and nine setae on the palp basifemur, but this new species differs from it by (1) having 20–22 setae on each chelicera vs. 15 setae in N. paracapillatus (2) having 6 and 17 setae on palp genu and tibiotarsus respectively vs. 4 and 14 setae on these segments respectively in N. paracapillatus (3) having longer palp basifemur (667–680), longer palp genu 245, and longer palp tibiotarsus (612–700) vs. 264, 60, and 264 for each segment respectively in N. paracapillatus.

Type material

One holotype female and one paratype female were collected from leaves of S. officinale at Al-Hekr (34°54′27″ N, 36°19′29″ E), Hama governorate, Syria, 17 November 2023, (Coll. Hamadi, A.).

Etymology

The specific name of the new species refers to its similarity with the species N. paracapillatus.

Neomolgus syriensis sp. nov. Barbar and Hamadi

ZOOBANK: 19fc7ff4-6a16-41a7-bae5-682e1fbedc3b

(Figures 4−6)

Diagnosis

Subcapitulum with six pairs of setae; each chelicera with 20–22setae; palp basifemora with 10–11 setae; palp genua 1.4–1.7 the length of palp telofemora; tibiotarsus with 14 setae; genital plate with nine pairs of setae.

Description

Female (n = 4) — Body length (including gnathosoma) 1810 (1895- 2195), body length (excluding gnathosoma) 1350 (1405–1680); width 644 (736–870).

Dorsum ― (Figure 4a). Dorsal idiosoma with broken striae, central region of dorsum with oblique, broken and irregular striae. Prodorsum with four eyes, diameter of anterior lateral eye 40 (40–45), and posterior lateral eye 38 (40–42), distance between two lateral eyes 75 (75–94). Dorsal setae smooth. Hysterosomal region with two pairs of cupules (ia anterolateral to d1 setae and im posterolateral to e1 setae), ip cupule invisible. Measurements of dorsal setae as follows: at missing in all specimens, mps 106 (78–98), pt 131, c1 110 (92–98), c2 96 (94–103), d1 110 (88–98), e1 112 (96–110), f1 96 (76–85), f2 85, h1 74 (62–72), h2 76 (62–78). Distance between dorsal setae: at–at 69 (62–78); pt–pt 294 (292–330); mps–pt 58 (53–66); mps–mps 157 (198–200); at–pt 250 (246–278); at–mps 250 (228–285); c1–c1 228 (272–253); c1–c2 180 (189–202); d1–d1 255 (212); e1–e1 246 (175); f1–f1 84 (92); f2–f2 220 (232); h1–h1 65 (75); c1–d1 212 (250–258); d1–e1 158 (200–212); e1–f1 130 (163–170); f1–h1 81 (130–150); h1–h2 69 (70–87).

Venter ― (Figure 4B and C). Aggenital region with three pairs of setae (ag1–3) and genital valves each with nine setae (g1–9); ovipositor with 14 setae; anal region with three pairs of smooth setae (ps1–3).

Gnathosoma ― (Figure 5 A and B). Subcapitulum with transverse and broken striae, 414 (414–480) long, width at base 142 (138–194), with six pairs of ventral setae (vh1–6); distal pair 92 (92–100) and proximal pair 57 (42–51); two pairs of short adoral setae ad1 23 (22–24) and ad2 18 (18–20); dorsal hypostomal setae (DHS) absent. Chelicerae 500 (470–495) long and 110 (92–114) wide, with 20 (20) [22 setae on right chelicera of the holotype, Figure 5A], proximal seta 66 (46–60) and distal seta 103 (92); movable and fixed digits each with one tooth; striation broken. Palp segments were illustrated from a paratype as tibiotarsus missing in the holotype. Palp trochanter nude, palp basifemur with 10 (10) setae [11 setae on the left basifemur in a paratype, Figure 5B], palp telofemur with one seta, palp genu with four setae; tibiotarsus with 14 setae: 11sts, one terminal solenidion and two long terminal setae, des 265 and ves 196; measurements of palp segments as follows: trochanter 28 (28–30), basifemur 368 (368–400), telofemur 48 (53–57), genu 82 (80), tibiotarsus broken (368–373); genua 1.4–1.7 the length of telofemora.

Legs ― (Figure 6). Measurements of legs as follows: leg I 1222 (1222–1318), leg II 1198 (1110–1200), leg III 1380 (1230–1290), leg IV 1538 (1454–1616); setal formulae of leg segments as follows: coxae I–IV 5–4–4–2; trochanters I–IV 1–1–1 (2 in a paratype)–1; basifemora I–IV 18–15 (16 in a paratype)–12–6; telofemora I–IV 7–7–6–6; genua I–IV 6sts,10asl–6sts,6asl–6sts,3asl–6sts,3asl; tibiae I–IV 16sts,10asl,1bsl,1pe,1T–15sts,8asl,1bsl,1T–16sts,1bsl–21sts,1asl–1T; tarsi I–IV 46sts,5asl,2bsl–44sts,1asl,2bsl–44sts,1T–36sts,1T.

Remarks

Neomolgus syriensis sp. nov. is similar to N. paracapillatus by having six pairs of setae on the subcapitulum and 14 setae on the palpal tibiotarsus, but the new species differs from it by (1) having 20–22 setae on each chelicera vs. 15 setae in N. paracapillatus (2) having simple idiosomal setae vs. setae on idiosoma plumose in N. paracapillatus (3) hysterosomal setae 1.55-2.8 longer than those in N. paracapillatus (4) body length including gnathosoma 1.5-1.8 longer than this of N. paracapillatus (5) palp length 1.41-1.46 longer than this of N. paracapillatus.

Neomolgus syriensis sp. nov. is also similar to N. neoparacapillatus (described in the present paper) by having six pairs of setae on subcapitulum and 20–22 setae chelicerae but it differs from N. neoparacapillatus by (1) having four setae on pedipalpal genu vs. six setae in N. neoparacapillatus (2) having 14 setae on the tibiotarsus vs. 17 setae in N. neoparacapillatus (3) having nine setae on genital plate vs. eight setae N. neoparacapillatus (4) palp genua 1.4–1.7 the length of palp telofemora vs. 3.3–4.9 in N. neoparacapillatus. (5) having less number of solenidia on tibiae I–IV (10asl,1bsl,1pe,1T–8asl,1bsl,1T–1bsl–1asl–1T vs. 19asl,1bsl,1pe,1T–16asl,1bsl,1T–3asl,1bsl–4asl,1T) and on tarsi I–II (5asl,2bsl–1asl,2bsl vs. 10asl,2bsl,1pe–3asl,2bsl).

Type material

One holotype female and three paratype females were collected from leaves of S. officinale at Al-Hekr (34°54′27″ N, 36°19′29″ E), Hama governorate, Syria, 30 September 2023. (Coll. Hamadi, A.).

Etymology

The specific name is derived from Syria, the country where it was collected.

Acknowledgements

The authors would like to thank Dr. Ziad Cheikh Khamis for his valuable help during preparing the manuscript. Thanks are due to Dr. Mohamed Kandeel from Egypt for supplying scientific papers.

---

References

1. Atyeo W.T. 1963. The Bdellidae (Acarina) of the Australian Realm. Part I: New Zealand, Campbell Island, and the Auckland Islands. p. 113-166; Part II: Australia and Tasmania. p. 167-210. Bull. Univ. Nebr. State Mus., 4 (8): 113-210.
2. Barbar Z. 2016. The mite fauna (Acari) of two Syrian citrus orchards, with notes on their morphology and economic importance. Syst. Appl. Acarol., 21 (8): 991-1008. https://doi.org/10.11158/saa.21.8.1
3. Barbar Z., Ueckermann E.A. 2017. Two new species and a new record of Bdellidae (Acari: Trombidiformes) from Syria. Acarologia, 57 (4): 1089-1102. https://doi.org/10.24349/acarologia/20174221
4. Gerson U.L., Smiley R., Ochoa R. 2003. Mites (Acari) for Pest Control. Blackwell Science Ltd, Malden, MA, USA. pp. 539. https://doi.org/10.1002/9780470750995
5. Hernandes F.A., Skvarla M.J., Fisher J.R., Dowling A.P.G., Ochoa R., Ueckermann E.A., Bauchan G.R. 2016. Catalogue of snout mites (Acariformes: Bdellidae) of the world. Zootaxa, 4152 (1): 001-083. https://doi.org/10.11646/zootaxa.4152.1.1
6. Khosravinejad M., Jafari S., Paktinat-Saeij S. 2020. A part of the Bdelloidea and Raphignathoidea fauna (Trombidiformes: Prostigmata) in Lorestan Province, with Cyta kreiteri recorded for the first time from Iran. Pers. J. Acarol., 9 (1): 87-92. https://doi.org/10.22073/pja.v9i1.57042
7. Michocka S. 1987. Polskie Roztocze (Acari) z rodzin Bdellidae i Cunaxidae. Monografie Fauny Polski, 14: 1-128 [in Polish with English summary].
8. Soliman Z.R. and Zaher M.A. 1975. Bdellid mites of Lattakia, Syria. Bull. Soc. Roy. Entomol., 59: 73-82.
9. Ueckermann E.A., Rastegar J., Saboori A., Ostovan H. 2007. Some mites of the superfamily Bdelloidea (Acari: Prostigmata) of Karaj (Iran), with descriptions of two new species and redescription of Bdellodes kazeruni. Acarologia, 47: 127-138.
10. Wu Y-F., Jin D-C., Yi T-C., Guo J-J. 2021a. Two new species of Bdellidae (Acari: Prostigmata) from China. Acarologia, 61 (3): 614-625. https://doi.org/10.24349/YNi9-m8W5
11. Wu Y-F., Jin D-C., Yi T-C., Guo J-J. 2021b. Chaetotaxy ontogeny of Bdella (Acari: Prostigmata: Bdelloidea) with morphological descriptions of all life stages of B. xini sp. nov, from China. Syst. Appl. Acarol., 26 (12): 2338-2357. https://doi.org/10.11158/saa.26.12.12

---
