Phytoseiidae of Vietnam (Acari: Mesostigmata) with description of a new species

Kreiter, Serge1; Bopp, Marie-Charlotte2; Douin, Martial3; Nguyen, Duc Tung4 and Wyckhuys, Kris5

1✉ Montpellier SupAgro, UMR CBGP INRA/ IRD/ CIRAD/ SupAgro, 755 Avenue du Campus Agropolis (Baillarguet), CS 30016, 34988 Montferrier-sur-Lez cedex, France.
2Montpellier SupAgro, UMR CBGP INRA/ IRD/ CIRAD/ SupAgro, 755 Avenue du Campus Agropolis (Baillarguet), CS 30016, 34988 Montferrier-sur-Lez cedex, France.
3Montpellier SupAgro, UMR CBGP INRA/ IRD/ CIRAD/ SupAgro, 755 Avenue du Campus Agropolis (Baillarguet), CS 30016, 34988 Montferrier-sur-Lez cedex, France.
4Vietnam National University of Agriculture, Trau Quy, Gia Lam, Hanoi, Vietnam.
5Chrysalis Consulting, Hanoi, Vietnam & Institute of Plant Protection, China Academy of Agricultural Sciences, Beijing, China & School of Biological Sciences, University of Queensland, Brisbane, Australia.

2020 - Volume: 60 Issue: 1 pages: 75-110

https://doi.org/10.24349/acarologia/20204362
ZooBank LSID: 9062B6C5-A8EF-4DB4-B5DA-30ACCA8B1D4A

Original research

Keywords

survey collection taxonomy systematics Vietnam

Abstract

Vietnam is a large country of Southeast Asia and a globally recognized hotspot of biodiversity. Until recently, only limited surveys had been carried out on the resident Phytoseiidae fauna and presence of 12 species had been documented, with 11 belonging to the sub-family Amblyseiinae and 1 to the sub-family Typhlodrominae. Here, we present results from 2017 field surveys and add a total of 8 new country records, one of which a newly-described species. At least 5 species (i.e., Neoseiulus longispinosus, Paraphytoseius cracentis, P. orientalis, Amblyseius cinctus and A. herbicolus) are well-known biological control agents (BCA), while two species (Euseius ovaloides and Gynaeseius liturivorus) carries ample potential as BCA agents but necessitates further study. In addition to the intrinsic value of phytoseiid mite biodiversity in tropical environments, demonstration of the natural occurrence of efficient BCAs in Southeast Asian countries such as Vietnam is of great agricultural and commercial interest.


Introduction

The Phytoseiidae family is widespread all over the world and consists of about 2,500 valid species dispatched in three sub-families and 94 genera (Demite et al. 2014, 2020). Several species in the family are important natural enemies of phytophagous mites, insect eggs and small (or immature) insects in natural habitats, arable field crops and protected crops globally (McMurtry and Croft 1997; McMurtry et al. 2013). Despite the extensive faunistic surveys carried out for more than 70 years worldwide, the fauna of certain countries and ecosystems remains little explored (Tixier and Kreiter, 2009; Kreiter et al. 2020a). Consequently, it is important to conduct surveys in these poorly-investigated areas and gain more information on resident biodiversity, especially in hotspots of biodiversity. Furthermore, in-country surveys of Phytoseiidae can signal local presence of known biological control agents (BCA) and introduce new potential BCAs, especially in the context of international and country regulations including the Nagoya Protocol on Access and Benefit Sharing (Mason et al. 2018).

Most areas of Southeast Asia constitute globally-important hotspots of biodiversity (Myers, 1988). These geographical entities are of immediate importance to biodiversity conservation, regularly hold high endemism and have been subject to considerable loss of natural habitats in recent years (Myers et al. 2000). The characterization of the phytoseiid mite diversity in these areas is thus directly contributing to this general topic of conservation. Though Vietnam is a large area in Southeast Asia, scant information exists on the resident phytoseiid mite fauna restricted to only five species listed in the world Phytoseiidae database (Demite et al. 2020) [Amblyseius matinikus Schicha & Corpuz-Raros, Graminaseius polisensis (Schicha & Corpuz-Raros), Neoseiulus longispinosus (Evans), Paraphytoseius orientalis (Narayanan, Kaur & Ghai), and Scapulaseius asiaticus (Evans)], based on only one paper (Nguyen et al. 2016) concerning a survey in one city of Vietnam, i.e., Ho Chi Minh City.

Actually, 12 species are known from Vietnam, the previous five and 7 additional species: Amblyseius tamatavensis Blommers, Proprioseiulus dahonagnas (Schicha & Corpuz-Raros) and an undetermined Typhlodromus sp., Paraphytoseius cracentis (Corpuz & Rimando), Amblyseius largoensis (Muma), Neoseiulus californicus (McGregor) and Proprioseiopsis lenis (Corpuz & Rimando) (Nguyen & De Clercq, 2018; Nguyen & Dao, 2019; Nguyen et al. 2019a; Nguyen et al. 2019b).

This paper constitutes the sixth contribution to Vietnam's Phytoseiidae Fauna and reports results of an additional field surveys realised in 2017.

Material and Methods

The survey took place in Yen Bai province, a mountain province located at the northwest part of northern-central Vietnam.

Plant-inhabiting mites were collected in several cultivated plots planted with Manihot esculenta and on surrounding wild plants in two villages of Vietnam (Vinh Kien village: 21.74°N, 105.08°E, Yen Binh district, Yen Bai province and Mau Dong village: 21.91°N, 104.64°E, Van Yen district, Yen Bai province).

Mites were directly collected on leaves with a fine brush.

Collected mite specimens were then transferred with a fine brush into small plastic vials containing 70° ethanol. Next, mites were mounted on slides using Hoyer's medium and all identified using a phase contrast and Differencial Interference contrast microscope (DMLB, Leica Microsystèmes SAS, Nanterre, France). Characters of specimens were measured using a graduate eyepiece (Leica, see above). Chant and McMurtry's (1994, 2007) concepts of the taxonomy of the family Phytoseiidae and the world catalogue database of Demite et al. (2014, 2020) were used to identify mite species. In this paper, the setal nomenclature system adopted was that of Lindquist & Evans (1965) and Lindquist (1994), as adapted by Rowell et al. (1978) for the dorsum and by Chant & Yoshida-Shaul (1991) for the venter. The idiosomal setal pattern follows Chant & Yoshida-Shaul (1992). The notation for solenostomes and poroids is based on Athias-Henriot (1975). Numbers of teeth on the fixed and movable cheliceral digits do not include the respective apical tooth. Setae not referred to in the Results section should be considered as absent. All measurements are given in micrometers (µm) in the text and figures and presented as the mean in bold followed by the range in parenthesis. All collected individuals were measured if no precision is given. New measurements added with existing literature records are marked in bold in the tables.

Specimens are deposited in the mite collections of Montpellier SupAgro conserved in UMR CBGP INRA/IRD/CIRAD/SupAgro. All specimens were identified, except for few single males which were not taken into account. The following abbreviations are used in this paper for morphological characters: dsl = dorsal shield length just under j1 to just below J5; dsw = dorsal shield width at the level of s4; Per. ext.: peritreme extension; gd = solenostome; Z4 ser., Z5 ser. = Z4, Z5 serrated (if Z4 and Z5 without ser. = not serrated); Metastern. sh. = presence or absence of metasternal shield; lisl = Largest inguinal sigilla (= ''metapodal plate'') length; lisw = Largest inguinal sigilla (= ''metapodal plate'') width; sisl = smallest inguinal sigilla (= ''metapodal plate'') length; gensl = genital shield length; gensw post. cor. = genital shield width posteriorly; vsl = ventrianal shield length; vsw ZV2 & vsw anus = ventrianal shield width at ZV2 level and at paranal setae level; Dist. solen. vas = distance between solenostomes on the ventrianal shield; scl = total spermatheca length (calyx + neck or cervix + atrium); scw = calyx width; FD = fixed digit; Fdl = fixed digit length; MD = movable digit; Mdl = movable digit length; No teeth Fd = number of teeth on the fixed digit; No teeth Md = number of teeth on the movable digit; Shaft = length of the shaft of spermatodactyl; BCA = Biological control agents; FCI = French Caribbean Islands; VCW: various countries in the world; im. = immature. The following abbreviations are used in this paper for institution: CBGP = Centre de Biologie pour la Gestion des Populations; CIRAD = Centre International de Recherche Agronomique pour le Développement; INRA = Institut National de la Recherche Agronomique; IRD = Institut de Recherche pour le Développement; MSA = Montpellier SupAgro, France; UMR = Unité Mixte de Recherche.

Results and Discussion

A total of 14 species were found: 11 belonging to Amblyseiinae and to genera Amblyseius, Euseius, Graminaseius, Gynaeseius, Neoseiulus, Paraphytoseius and Scapulaseius; Three species are belonging to Phytoseiinae and to genus Phytoseius. No species of the sub-family Typhlodrominae has been found.

Thirteen species had been previously described among which 8 are new records for Vietnam, while 1 species is new to science. All results concerning the 14 species are given hereunder.

Subfamily Amblyseiinae Muma

Amblyseiinae Muma, 1961: 273.

Genus Neoseiulus Hughes

Neoseiulus Hughes, 1948: 141.

Neoseiulus longispinosus (Evans)

Typhlodromus longispinosus Evans 1952: 413; Evans 1953: 465; Womersley 1954: 177; Ehara 1958: 55.

Typhlodromus (Amblyseius) longispinosus, Chant 1959: 74.

Amblyseius longispinosus, Corpuz & Rimando 1966: 129; Schicha 1975: 103.

Neoseiulus longispinosus, Moraes et al. 1986: 85; 2000: 245; Chant & McMurtry 2003a: 37; Moraes et al. 2004a: 129; Chant & McMurtry 2007: 29.

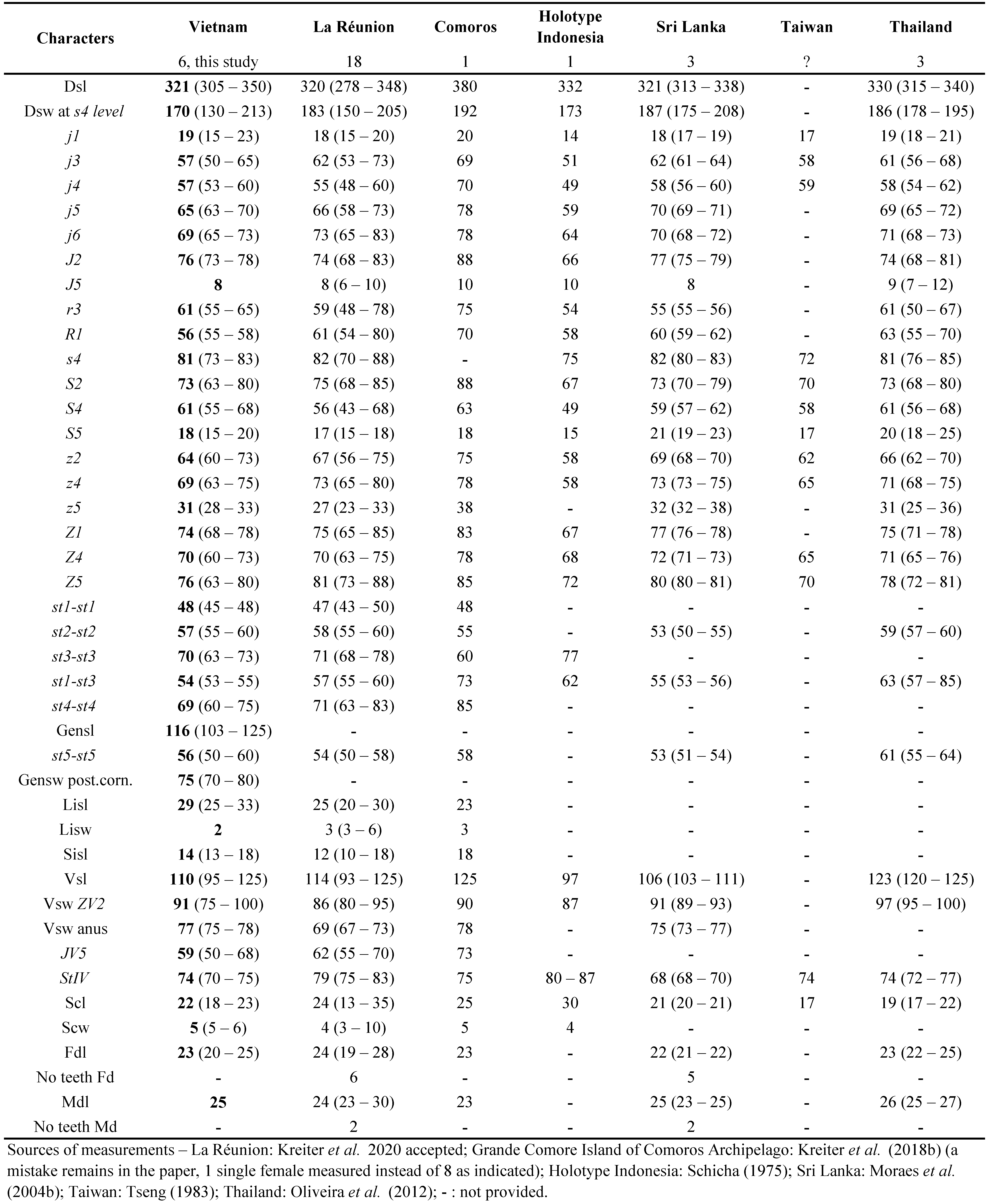

Table 1. Character measurements of adult females of Neoseiulus longispinosus collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi in P4 plot (aasl 66 m, lat. 21°54'41'' N, long. 104°38'7'' E), 1 ♀ on Styrax tonkinensis (Styracaceae), 12/V/2017; in P8 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'9'' E), 1 im. on Bambusodae sp. (Poaceae), 17/V/2017; in P1 plot (aasl 66 m, lat. 21°54' N, long. 104°38' E), 1 ♀ an in plot SP5 plot (aasl 66 m, lat. 21°54' N, long. 104°38' E), 3 ♀♀, on Manihot esculenta (Euphorbiaceae), 17/V/2017; in P11 plot (aasl 66 m, lat. 21°54'30'' N, long. 104°38'14'' E), 1 im. on Mallotus canii (Euphorbiaceae), and 1 ♀ on Passiflora foetida (Passifloraceae), 31/V/2017.

Remarks: this species is distributed in many countries of the world, mainly in tropical areas (Moraes et al. 2000; Mailloux et al. 2010; Kreiter et al. 2013, 2018 a, c; Demite et al. 2020). It was rarely encountered before in surveys made in Guadeloupe, Martinique and La Réunion but was recently more captured when screening low vegetation constituting companion plants in citrus orchards (Mailloux et al. 2010; Kreiter et al. 2013, 2018c; Le Bellec et al., unpub. data). This species appears to be more common on grasses of the lower vegetation with populations of tetranychid mites. Neoseiulus longispinosus, a type II phytoseiid predatory mite like N. californicus (McMurtry et al. 2013), is increasingly being considered for the control of Eutetranychus, Oligonychus, and Tetranychus spider mites in Asia (Nusartlert et al. 2011). Its behaviour, feeding, development, prey consumption, cannibalism and intra-guild predation have been extensively studied by several authors (see for example Luong et al. 2017), with the ultimate aim to enhance its use for biological control. Neoseiulus longispinosus is a well-known BCA sold in several countries and commercially-available for management of spider mites. Under controlled laboratory conditions, N. longispinosus exhibits potential as a BCA against the citrus red spider mite P. citri (Huyen et al., 2017).

This species was already known from Vietnam and reported as a local BCA in earlier survey work (Nguyen et al. 2016) though no measurements were given. Measurements of female specimens collected during this study are given in table 1 and compared with measurements obtained from specimens collected in other countries of Asia and Islands of the Indian Ocean. Measurements match with most of the previous measurements, especially with those obtained on specimens from La Réunion Island. The setal lengths of the present females are longer than those obtained from the holotype, which are in the lower part of the range of data obtained for each seta (probably measurements were obtained from a very small size female).

Genus Paraphytoseius Swirski & Shechter

Paraphytoseius Swirski & Shechter 1961: 113; Moraes et al. 1986: 104.

Chant & McMurtry 2003b: 216; Moraes et al. 2004a: 160; Chant & McMurtry 2007: 49.

Amblyseius (Paraphytoseius), Ueckermann & Loots 1987: 221.

Amblyseius (Ptenoseius), Pritchard & Baker 1962: 295.

Proprioseius (Paraphytoseius), Karg 1983: 302.

Ptenoseius, Schuster & Pritchard 1963: 198.

Paraphytoseius cracentis (Corpuz & Rimando)

Ptenoseius cracentis Corpuz & Rimando 1966: 115.

Amblyseius (Paraphytoseius) multidentatus, misidentification ( S5 illustrated in figures): Ehara & Bhandhufalck 1977: 79 as mentioned in Ehara et al. 2000: 114.

Paraphytoseius cracentis, Moraes et al. 1986: 104; Chant & McMurtry 2003b: 220; Moraes et al. 2004a: 160; Chant & McMurtry 2007: 53.

Table 2. Character measurements of adult females and males of Paraphytoseius cracentis collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi, in P3 plot (aasl 66 m, lat. 21°54'40'' N, long. 104°38'13'' E), 1 ♀ + 1 ♂ on Chromolaena odorata (Asteraceae) and 1 ♀ on Rubus alceifolius (Rosaceae), 11/V/2017; in P5 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'22'' E), 3 ♀♀ + 1 ♂ + 1im. on C. odorata (Asteraceae), 1 ♀ + 1 ♂ on Ficus hispida (Moraceae) and 1 ♀ + 1 ♂ on Artemisa vulgaris (Asteraceae), 13/V/2017; in P6 plot (aasl 66 m, lat. 21°54'55'' N, long. 104°38'22'' E), 1 ♀ on Ficus hispida (Moraceae) and 1 ♀ on Curculigo orchioides (Hypoxidaceae), 15/V/2017; in P7 plot (aasl 66 m, lat. 21°54'51'' N, long. 104°38'22'' E), 1 ♀ on F. hispida (Moraceae) and 2 ♀ + 2 ♂ on Urena lobata (Malvaceae), 16/V/2017; in P8 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'9'' E), 2 ♀♀ on C. odorata (Asteraceae) and 1 ♀ on R. alceifolius (Rosaceae), 16/V/2017; in plot PM1 plot (aasl 66 m, lat. 21°54' N, long. 104°38' E), 2 ♀♀ on an unknown host plant, 17/V/2017; in P9 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'18'' E), 1 ♀ on U. lobata (Malvaceae) and 6 ♀♀ + 1 ♂ on C. odorata (Asteraceae), 18/V/2017; in P10 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'12'' E), 2 ♀♀ + 1 ♂ on C. odorata (Asteraceae), 18/V/2017; in P11 plot (aasl 66 m, lat. 21°54'30'' N, long. 104°38'14'' E), 4 ♀♀ + 1 ♂ on F. hispida (Moraceae), 1 ♂ + 1 im. on Bidens pilosa (Asteraceae), 4 ♀♀ + 1 ♂ on C. odorata (Asteraceae), 1 ♂ on R. alceifolius (Rosaceae) and 2 ♀♀ + 1 ♂ on an unknown host plant, 31/V/2017; in P15 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 2 ♀♀ on F. hispida (Moraceae), 6 ♀♀ + 2 ♂♂ on U. lobata (Malvaceae) and 1 ♀ on Ch. odorata (Asteraceae), 03/VI/2019; in P4 plot (aasl 66 m, lat. 21°54'41'' N, long. 104°38'7'' E), 1 ♀ on Xanthium strumarium (Asteraceae), 18/VII/2017; in P5 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'22'' E), 1 ♀ on U. lobata (Malvaceae), 19/VII/2017; in P6 plot (aasl 66 m, lat. 21°54'55'' N, long. 104°38'22'' E), 3 ♀♀ on X. strumarium (Asteraceae), 20/VII/2017; in P16 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 1 ♂ on Ch. odorata (Asteraceae) and 1 ♀ on U. lobata (Malvaceae), 22/VII/2017; in P10 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'12'' E), 1 ♀ + 1 ♂ on Tephrosia candida (Fabaceae) and 1 ♀ on Morus alba (Moraceae), 25/VII/2017; in P14 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 1 ♀ on X. strumarium (Asteraceae), 27/VII/2017; in P12 plot (aasl 66 m, lat. 21°54'51'' N, long. 104°38'45'' E), 2 ♀♀ + 1 ♂ on U. lobata (Malvaceae), 29/VII/2017.

Remarks: the predatory mite P. cracentis is a natural enemy of thrips found on vegetables such as green bean, cucumber, green squash, eggplant, and pepper in the Red River Delta in Vietnam. Paraphytoseius cracentis is feeding on Frankliniella occidentalis Pergande (Thysanoptera: Thripidae) and Carpoglyphus lactis (L.) (Acari: Acaridae) (Nguyen and De Clercq 2018, paper in which this species was mentioned for the first time for Vietnam. The intrinsic rate of natural increase of P. cracentis fed on C. lactis (0.215 female/ female/ day) was however significantly higher than that of mites fed on thrips (0.189). Nguyen and De Clercq (2018) conclude that P. cracentis can sustain and increase its population when fed on F. occidentalis, and that C. lactis can be used for mass-rearing of this predatory mite in the perspective to use it in biological control.

This species was already known from Vietnam and reported locally as a BCA from earlier survey work (Nguyen and De Clercq 2018) though no measurements were provided. Measurements are given here in table 2 for females and males and compared with those obtained from specimens collected in other countries of Asia.

All measurements collected during this study match well with most of the previous measurements, especially with measurements of specimens from Thailand.

Paraphytoseius horrifer (Pritchard & Baker)

Amblyseius (Ptenoseius) horrifer Pritchard & Baker, 1962: 295.

Amblyseius horrifer, Meyer & Rodrigues 1966: 30.

Amblyseius (Paraphytoseius) horrifer, van der Merwe 1968: 169.

Proprioseius (Paraphytoseius) horrifer, Karg 1983: 302.

Paraphytoseius horrifer, Moraes et al. 1986: 105; Beard 2001: 84; Chant & McMurtry 2003b: 37; Moraes et al. 2004a: 152; Chant & McMurtry 2007: 53.

Table 3. Character measurements of adult females and males of Paraphytoseius horrifer collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi, in P11 plot (aasl 66 m, lat. 21°54'30'' N, long. 104°38'14'' E), 1 ♂ on Rubus alceifolius (Rosaceae), 31/V/2017; in P15 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 1 ♀ on Chromolaena odorata (Asteraceae), 2/VI/2017 and 1 ♀ on R. alceifolius (Rosaceae), 3/VI/2017; Ma, in P1 plot (aasl 66 m, lat. 21°45'53'' N, long. 105°1'28'' E), 1 ♂ on Xanthium stumarium (Asteraceae) and 1 ♀ on Blumea eberhardtii (Asteraceae), 14/VII/2017.

Remarks: This species is widely distributed in sub-Saharan Africa and Madagascar. The biology of P. horrifer remains totally unknown.

This is the first record of this species from Vietnam and from Asia. Measurements are given in the table 3 for females and males and compared with those obtained from specimens collected in other countries of Africa and Indian Ocean. Measurements obtained during this study agree well with most of the previous measurements obtained, especially with measurements of specimens from La Réunion Island.

Paraphytoseius orientalis (Narayanan, Kaur & Ghai)

Typhlodromus (Amblyseius) orientalis Narayanan, Kaur & Ghai 1960: 394.

Paraphytoseius orientalis, Moraes et al. 1986: 105; Chant & McMurtry 2003b: 220; Moraes et al. 2004a: 162, Chant & McMurtry 2007: 53.

Amblyseius ipomeai El-Banhawy 1984: 126 (synonymy according to Chant & McMurtry 2003b: 216).

Paraphytoseius narayanani Ehara 1967: 67 (synonymy according to Ehara & Ghai, in Ehara 1967: 77).

Paraphytoseius multidentatus Swirski & Shechter 1961: 114 (synonymy according to Matthysse & Denmark 1981).

Table 4. Character measurements of adult females of Paraphytoseius orientalis collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi, in P4 plot (aasl 66 m, lat. 21°54'41'' N, long. 104°38'7'' E), 1 ♀ on Styrax tonkinensis (Styracaceae), 12/V/2017; in P6 plot (aasl 66 m, lat. 21°54'55'' N, long. 104°38'22'' E), 1 ♀ on Curculigo orchioides (Hypoxidaceae), 15/V/2017; in P4 plot (aasl 66 m, lat. 21°54'41'' N, long. 104°38'7'' E), 1 ♀ on Xanthium stumarium (Asteraceae), 18/VII/2017; in P6 plot (aasl 66 m, lat. 21°54'55'' N, long. 104°38'22'' E), 1 ♀ on X. stumarium (Asteraceae), 20/VII/2017.

Remarks: This species is widely distributed in tropical and subtropical areas in South America, Africa and Asia. It and other members of the genus belong to the large polyphagous generalist group, type III (McMurtry & Croft 1997; McMurtry et al. 2013). Navasero and Navasero (2016) have studied the life history of P. orientalis on the broad mite, Polyphagotarsonemus latus (Banks), as prey. The authors reported high predation rates on P. latus eggs, suggesting its potential use against this pest.

This species has been collected before in Vietnam by Nguyen et al. (2016). Exact indications of locations were provided in this paper but without providing measurements of collected specimens. Measurements from this study are provided in the table 4 and compared with those obtained from specimens collected in other countries of Asia and Indian Ocean. Measurements obtained with this study agree well with most obtained from female specimens collected in other countries, especially with measurements of specimens from Hong Kong and La Réunion Island.

Genus Scapulaseius Karg & Oomen-Kalsbeek

Scapulaseius Karg & Oomen-Kalsbeek 1987: 132.

Amblyseius (Scapulaseius) Karg & Oomen-Kalsbeek 1987: 132.

newsami group of Typhlodromus (Amblyseius), Chant 1959: 95.

markwelli species group of Amblyseius, Schicha 1987: 2.

japonicus species group of Amblyseius, Schicha 1987: 26.

oguroi species group of Amblyseius, Wu & Ou 1999: 103.

Scapulaseius, Chant & McMurtry 2005b: 331; 2007: 65.

Scapulaseius asiaticus (Evans)

Typhlodromus asiaticus Evans 1953: 461.

Typhlodromus (Amblyseius) asiaticus, Chant 1959: 80.

Amblyseius (Typhlodromopsis) asiaticus, Muma 1961: 289.

Amblyseius (Amblyseius) asiaticus, Ehara 1966: 20; Ehara & Bhandhufalck, 1977: 58.

Amblyseius asiaticus, Carmona 1968: 280; Gupta, 1975: 32.

Amblyseius (Neoseiulus) asiaticus, Ehara 2002: 127.

Typhlodromips asiaticus, Moraes et al. 2004a: 207.

Scapulaseius asiaticus, Chant & McMurtry 2005b: 335; 2007: 67.

Scapulaseius linearis Corpuz-Raros & Rimando 1966:125 (synonymy according to Schicha & Corpuz-Raros 1992: 60).

Scapulaseius siaki Ehara & Lee 1971: 64 (synonymy according to Ehara & Bhandhufalck 1977: 58).

Table 5. Character measurements of adult females of Scapulaseius asiaticus collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Ma, in P1 plot (aasl 63 m, lat. 21°45'53'' N, long. 105°1'28'' E), 1 ♀ on Chromolaena odorata (Asteraceae), 9/V/2017; Muoi, in P7 plot (aasl 66 m, lat. 21°54'51'' N, long. 104°38'22'' E), 1 ♀ on Crassocephalum crepidioides (Asteraceae), 16/V/2017; in P9 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'18'' E), 1 ♀ on an unknown plant support, 18/V/2017; in P11 plot (aasl 66 m, lat. 21°54'30'' N, long. 104°38'14'' E), 1 im. on C. odorata (Asteraceae), 31/V/2017; in P15 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 1 ♀ on C. odorata (Asteraceae), 31/V/2017; in P8 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'9'' E), 2 ♀♀ + 1 im. on Xanthium strumarium (Asteraceae), 2/VI/2017; in P13 plot (aasl 66 m, lat. 21°54'50'' N, long. 104°38'46'' E), 1 ♀ on X. strumarium (Asteraceae), 29/VII/2017.

Remarks: Species of this genus are supposed to be of type III (McMurtry and Croft 1997; McMurtry et al. 2013), i.e. a polyphagous generalist predator. However, the biology of S. asiaticus remains totally unknown.

This species was already known from Vietnam from results of a previous survey (Nguyen et al. 2016). Exact indications of locations were provided in this paper without providing any morphological data on the collected specimens. Measurements of collected specimens during this study are provided in table 5 and compared with those obtained from specimens collected in other countries of Asia and Indian Ocean. Measurements obtained match with most of previous measurements, especially with measurements of specimens from Thailand.

Scapulaseius okinawanus (Ehara)

Amblyseius (Amblyseius) okinawanus Ehara 1967: 72; Ehara & Bhandhulfack 1977: 58.

Amblyseius okinawanus, Lo 1970: 56.

Neoseiulus okinawanus, Moraes et al. 1986: 91.

Amblyseius (Neoseiulus) okinawanus, Ehara & Amano 1998: 37; Ehara & Amano 2002: 321.

Amblyseius okinawanus, Jung et al. 2003: 189.

Typhlodromips okinawanus, Moraes et al. 1986: 137; 2004a: 220.

Scapulaseius okinawanus, Chant & McMurtry 2005b: 335; 2007: 67.

Table 6. Character measurements of adult females and males of Scapulaseius okinawanus collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi, in PM1 plot (aasl 66 m, lat. 21°54' N, long. 104°38' E), 2 ♂♂ on an unknown host plant, 17/V/2017; in P9 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'18'' E), 2 ♀♀ on Crassocephalum crepidioides (Asteraceae), 17/V/2017; in P15 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 1 ♀ on Rubus alceifolius (Rosaceae), 17/V/2017; in P11 plot (aasl 66 m, lat. 21°54'30'' N, long. 104°38'14'' E), 3 ♀♀ on Xanthium strumarium (Asteraceae), 26/VII/2017.

Remarks: The biology of S. okinawanus remains totally unknown.

This is the first mention of this species in Vietnam.

Measurements of specimens collected during this study are provided in table 6 for females and males and compared with measurements obtained from specimens collected in other countries of Asia. Measurements obtained agree well with most of those previously obtained, except setae j6, J2, and z5, and macrosetae SgeI and SgeII in female specimens and shorter setae of the j-J, S series and Z1 of male specimens.

Genus Amblyseius Berlese

Amblyseius Berlese, 1914: 143; Garman, 1948: 16; Muma, 1955: 263; Chant, 1957: 528; Kennet, 1958: 474; Muma, 1961: 287; Gonzalez & Schuster, 1962: 8; Pritchard & Baker, 1962: 235; van der Merwe & Ryke, 1963: 89; Corpuz & Rimando, 1966: 116; van der Merwe, 1968: 109; Zack, 1969: 71; Muma and Denmark, 1970: 62; Chant & Hansell, 1971: 703; Denmark & Muma, 1972: 19; Tseng, 1976: 104; Chaudhri et al., 1979: 68; Karg, 1982: 193, Schicha, 1987: 19, Schicha & Corpuz-Raros, 1992: 12; Denmark & Muma, 1989: 4; Chant & McMurtry, 2004a: 188; 2007: 73.

Amblyseius (Amblyseius), Karg, 1983: 313.

Amblyseius (Amblyseialus), Karg, 1983: 313.

Amblyseius (Amblyseius) section Amblyseius, Wainstein, 1962: 15.

Amblyseius (Amblyseius) section Italoseius Wainstein, 1962: 15.

Amblyseius cinctus Corpuz & Rimando

Amblyseius cinctus Corpuz & Rimando 1966: 119.

Amblyseius (Amblyseius) cinctus, Ehara & Bhandhufalck 1977: 70.

Amblyseius (Multiseius) cinctus, Denmark & Muma 1989: 103.

Amblyseius cinctus, Moraes et al. 1986: 10; 2004a: 20; Chant & McMurtry 2004a: 203; 2007: 78.

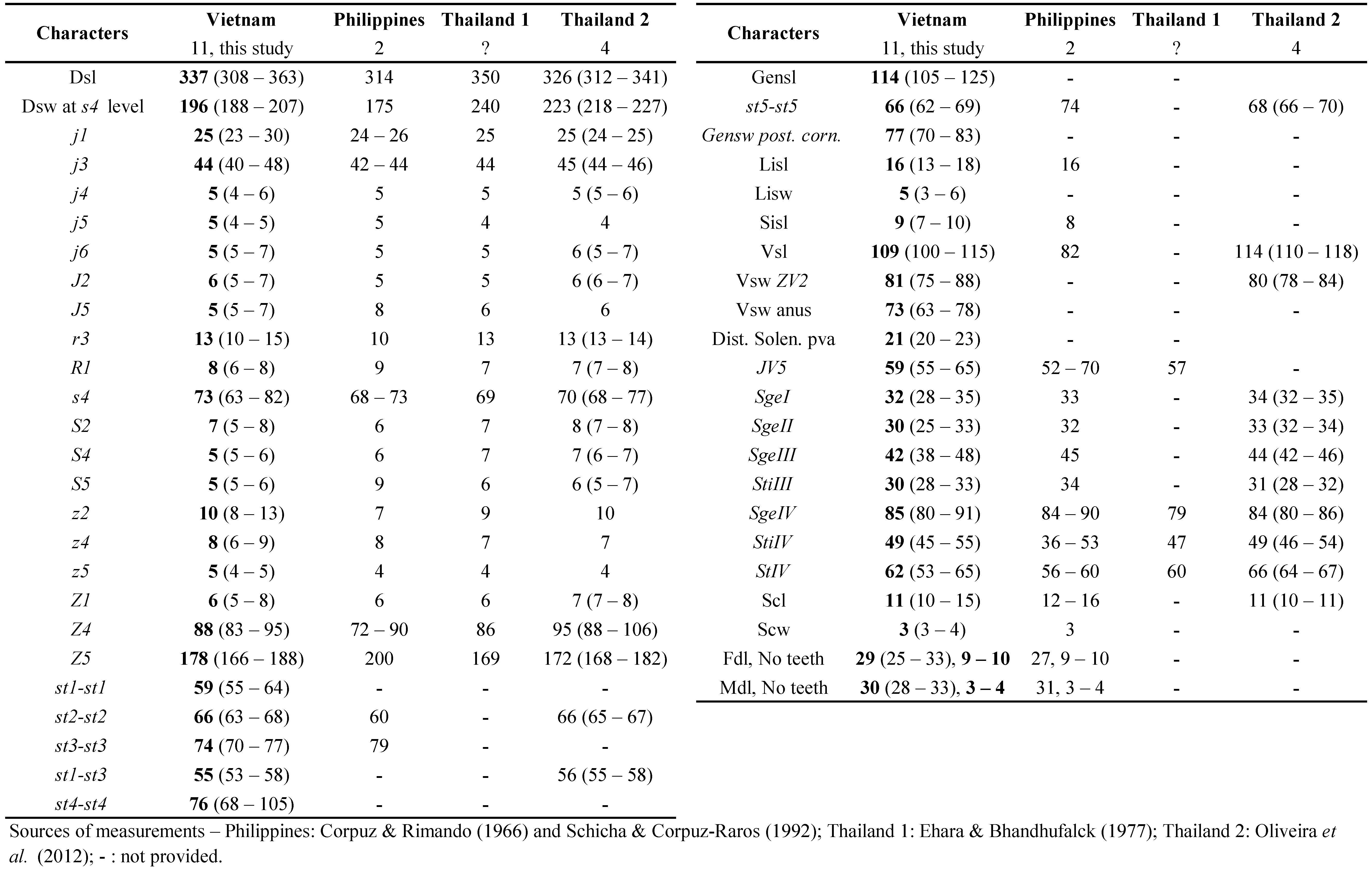

Table 7. Character measurements of adult females of Amblyseius cinctus collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi in P1 plot (aasl 66 m, lat. 21°54' N, long. 104°38' E), 10 ♀ + 1 im. on Manihot esculenta (Euphorbiaceae), 17/V/2017; in P5 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'22'' E), 1 ♀ on Urena lobata (Malvaceae), 19/VII/2017.

Remarks: This species was described from specimens collected in the Philippines on Panicum sp. and Streblus asper. Life history of A. cinctus has been evaluated on Polyphagotarsonemus latus (Banks), an important pest of several cultivated (crop) plants worldwide (Vichitbandha and Chandrapatya 2009) and this species can be considered as a potential BCA of P. latus.

This is the first mention of this species in Vietnam.

Measurements of specimens collected during this study are provided in table 7 and compared with measurements obtained from specimens collected in other countries of South-East Asia. Measurements obtained during this study agree well with those obtained from female specimens collected in other countries.

Amblyseius herbicolus (Chant)

Typhlodromus (Amblyseius) herbicolus Chant 1959: 84.

Amblyseius (Amblyseius) herbicolus, Muma 1961: 287.

Typhlodromus herbicolus, Hirschmann 1962: 23.

Amblyseius herbicolus, Moraes et al. 1986: 14; 1989a: 79; Chant & McMurtry 2004: 208; Moraes et al. 2004a: 27; Chant & McMurtry 2007: 78.

Amblyseius deleoni Muma & Denmark 1970: 68 (synonymy according to Daneshvar & Denmark 1982; Denmark & Muma 1989).

Amblyseius giganticus Gupta 1981: 33 (synonymy according to Gupta 1986).

Amblyseius impactus Chaudhri 1968: 553 (synonymy according to Daneshvar & Denmark 1982).

Amblyseius (Amblyseiulus) thermophilus Karg 1991: 12 (synonymy according to El-Banhawy & Knapp 2011).

Typhlodromus (Amblyseius) amitae Bhattacharyya 1968: 677 (synonymy according to Denmark & Muma 1989).

Table 8. Character measurements of adult females of Amblyseius herbicolus collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi in P8 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'9'' E), 1 ♀ on Paspalum sp. (Poaceae), 17/V/2017.

Remarks: Amblyseius herbicolus is widespread in all tropical and subtropical regions of the world. It is the second most abundant phytoseiid mite on Coffea arabica in Brazil, and is deemed to be an efficient predator of Brevipalpus phoenicis (Geijskes), vector of the coffee ring spot virus (Reis et al. 2007). Amblyseius herbicolus is also found in association with the broad mite, Polyphagotarsonemus latus Banks in crops such as chili pepper (Capsicum annuum) in Brazil and has good potential for controlling the latter. Rodriguez-Cruz et al. (2013) have demonstrated that A. herbicolus was able to develop on broad mites, castor bean pollen (Ricinus communis) and sunn hemp pollen (Crotalaria juncea). Provision of pollen can enhance populations of this predator and increase biological control (Duarte et al. 2015), especially with cattail pollen (Typha latifolia), chilli pepper pollen and bee-collected pollen. Amblyseius herbicolus was collected recently in Comoros archipelago (Kreiter et al. 2018b). This is the first record of that species in Vietnam.

Measurements of the single specimen collected during this study are provided in table 8 and compared with measurements obtained from specimens collected in other countries of Africa, Asia and Indian Ocean. These measurements match with those obtained previously. The dorsal shield width is less important in the single Vietnam specimen than all order widths of the table, probably because the single female was a small one, all other dimensions being quite similar.

Genus Graminaseius

Graminaseius Chant & McMurtry 2004a: 215; 2007: 83.

Graminaseius polisensis (Schicha & Corpus-Raros)

Amblyseius polisensis Schicha & Corpuz-Raros 1992: 39; Moraes et al. 2004a: 47.

Graminaseius polisensis, Chant & McMurtry 2004a: 219; 2007: 85.

Table 9. Character measurements of one adult female and one adult male of Graminaseius polisensis collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi in P6 plot (aasl 66 m, lat. 21°54'55'' N, long. 104°38'22'' E), 1 ♀ + 1 ♂ on Xanthium strumarium (Asteraceae), 20/VII/2017.

Remarks: This species was described from several specimens collected on various plants in Philippines.

The biology of G. polisensis remains totally unknown and even the life type of this species and of species of Graminaseius are unknown.

This species was already known from Vietnam from a previous survey (Nguyen et al. 2016). Details of locations were provided in this paper though no measurements were provided on the collected specimens. Measurements of specimens collected in this study are provided in table 9 for the single female and the single male and compared with measurements obtained from specimens collected in the Philippines, i.e., country of the original description. Measurements obtained for Vietnamese specimens (both damaged) collected during this study agree well with most obtained from female and male type material from Philippines, most of the setae being shorter in Vietnamese specimens.

Genus Gynaeseius Wainstein

Amblyseius (Kampimodromus) section Gynaeseius Wainstein 1962: 14.

Indoseiulus Ghai & Menon 1969: 347.

Amblyseius (Indoseiulus) Ehara 1982: 42.

Indoseiulus, Denmark & Kolodochka 1993: 249; Moraes et al. 1986: 59; 2004a: 89.

Macmurtryseius Kolodochka & Denmark 1995: 20.

irregularis group Chant 1959: 70.

Gynaeseius, Chant & McMurtry 2006: 22; 2007: 107.

Gynaeseius liturivorus (Ehara)

Amblyseius (Indoseiulus) liturivorus Ehara 1982: 43; McMurtry & Moraes 1984: 29; Ehara 1985: 120.

Amblyseius (Amblyseius) liturivorus, Tseng 1983: 54.

Indoseiulus liturivorus, Moraes et al. 1986: 60; Denmark and Kolodochka 1993: 253; Ehara et al. 1994: 139; Ehara & Amano 1998: 48; Moraes et al.: 2004a: 89.

Amblyseius armellae Schicha and Gutierrez 1985: 175 (synonymy according to Denmark & Kolodochka 1993).

Re-description of the adult female of Gynaeseius liturivorus (Ehara)

n = 19 (Figs. 1 a – b, 2 a – c)

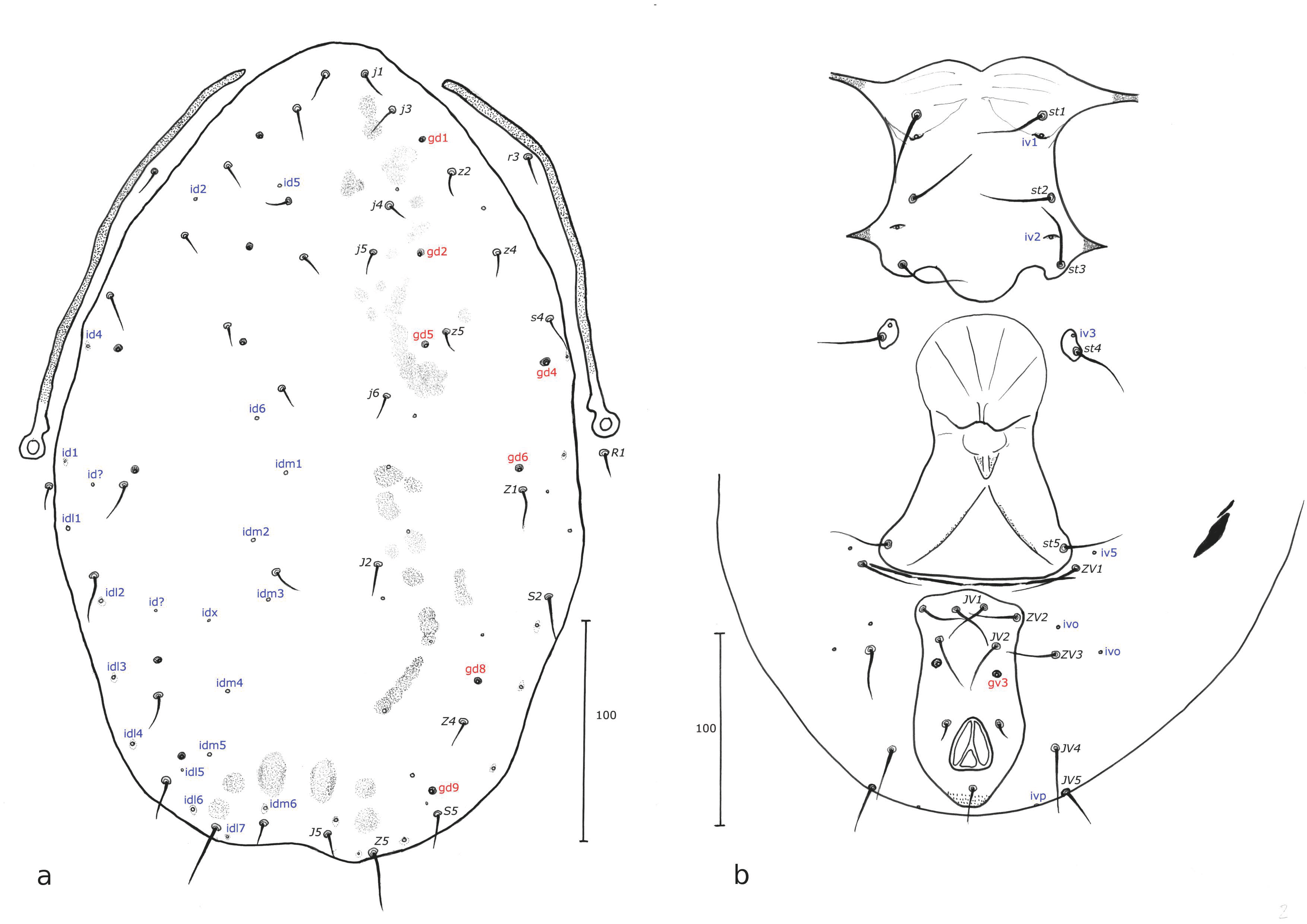

Figure 1. Female of Gynaeseius liturivorus (Ehara). a – Dorsal shield and peritreme; b – Ventral shields.

Dorsum — (Fig. 1a) Dorsal shield 361 (333 – 375) long and 223 (188 – 250) wide at level of s4, smooth, with seven solenostomes (gd1, gd2, gd4, gd5, gd6, gd8, gd9), 21 pairs of poroids, 16 pairs of dorsal setae and two pairs of sub-lateral setae off the dorsal shield: j1 18 (15 – 20), j3 19 (18 – 20), j4 14 (12 – 15), j5 13 (11 – 15), j6 15 (13 – 18), J2 18 (15 – 20), J5 8 (7 – 8), z2 16 (15 – 18), z4 18 (15 – 20), z5 13 (10 – 15), Z1 19 (18 – 20), Z4 18 (15 – 20), Z5 28 (25 – 30), s4 20 (18 – 23), S2 19 (15 – 23), S5 19 (18 – 20), r3 16 (15 – 18), R1 19 (17 – 20). All setae minute and smooth.

Peritreme — (Fig. 1a) Extending to a level between j1 to j3, closer to j3.

Venter — (Fig. 1b) All shields smooth. Sternal shield with three pairs of setae and two pairs of lyrifissures; one pair of sternal setae on metasternal shields with a pair of pores; posterior margin with a projection very difficult to see. Distances between st1-st1 64 (60 – 68), st2-st2 70 (63 – 78), st3-st3 81 (75 – 88), st1-st3 74 (68 – 78), st4-st4 93 (79 – 106). Genital shield length 130 (115 – 140), width at the level of st5 84 (78 – 90), width at the level of the posterior corners 95 (83 – 100). Two pairs of inguinal sigilla of ''metapodal shields'' 26 (23 – 28) long and 4 (3 – 5) wide for the primary and 14 (13 – 15) long for the secondary shield. Ventrianal shield with three pairs of preanal setae ( JV1, JV2, and ZV2), small oblong pre-anal pores. Membrane surrounding ventrianal shield with four pairs of setae ( ZV1, ZV3, JV4 and JV5), and six pairs of round to oblong poroids; ventrianal shield 109 (91 – 135) long, 66 (63 – 70) wide at level of ZV2, and 54 (50 – 60) wide at level of anus. One pair of pore distant to 24 (20 – 33). JV5 23 (20 – 25) long, smooth.

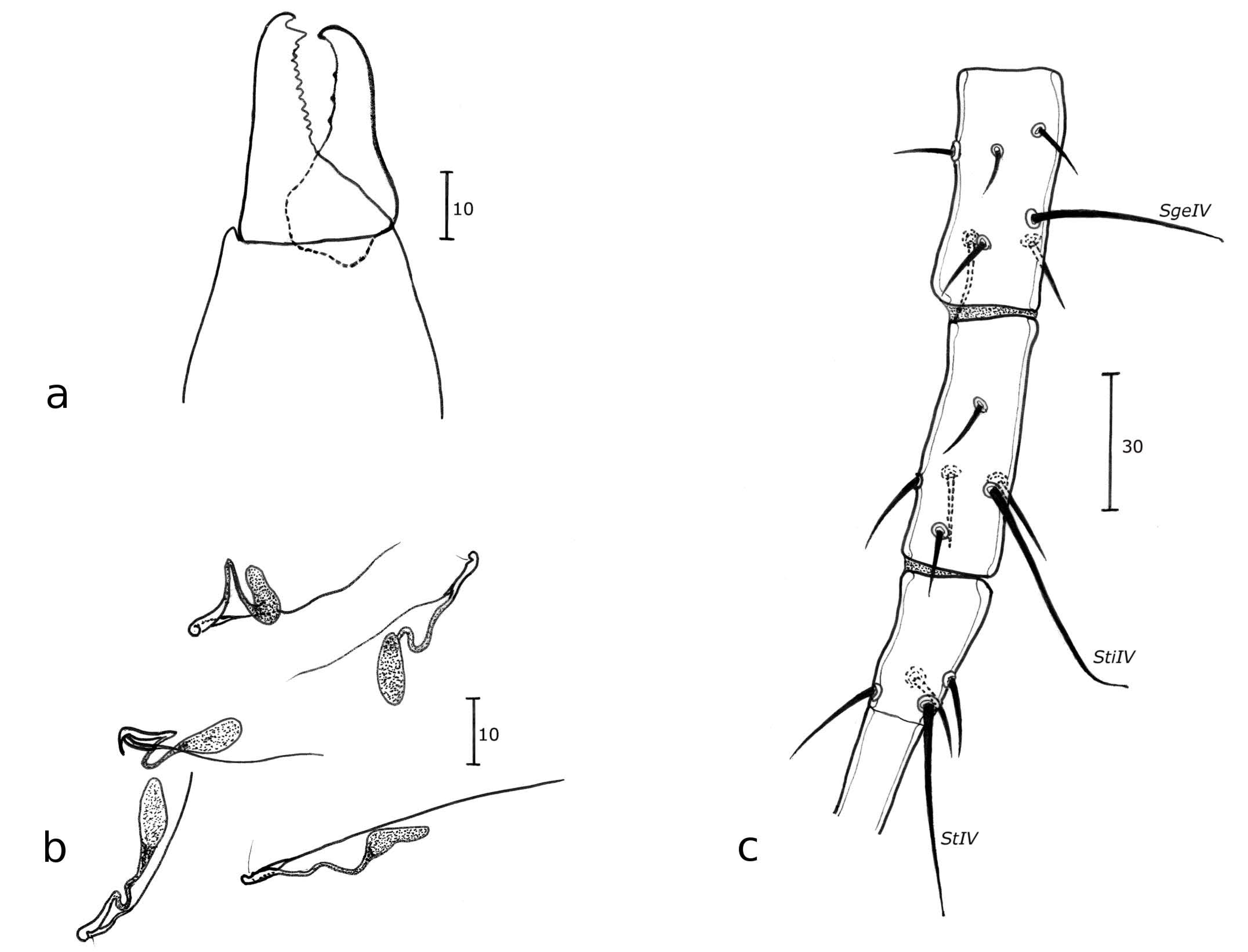

Figure 2. Female of Gynaeseius liturivorus (Ehara). a – Insemination apparatus; b – Chelicera; c – Genu; tibia and basitarsus of the leg IV.

Chelicera — (Fig. 2a) Chelicerae are visible by the side with digits open. Consequently, they are drawn. Fixed digit 30 (28 – 33) long with 11 teeth; and movable digit 34 (33 – 36) long with 3 small teeth.

Spermatheca — (Fig. 2b) Spermatheca with a long, slender tubular calyx 38 (33 – 47) long and 4 (2 – 7) wide, an atrium slightly swollen bifurcate. Ductus minor and ductus major visible in some specimens.

Legs — (Fig. 2c) Macrosetae on all legs, all pointed except on legs IV with macrosetae slightly bulbous; one on genua of legs I, II and III, and three on genu, tibia and basitarsus of leg IV: SgeI 35 (30 – 38), SgeII 15 (13 – 20), SgeIII 29 (25 – 30), StiIII 30 (28 – 35), SgeIV 42 (37 – 47), StiIV 54 (50 – 55), StIV 48 (43 – 53). Genu II and III with 7 setae each, chaetotactic formula of genu II: 2-2/0, 2/0-1; genu III: 1-2/1, 2/0-1. A pair of erected setae on femora IV: 30 (28 – 32).

First description of the deutonymphs of Gynaeseius liturivorus (Ehara)

n = 4 (Figs 3 a – b)

Figure 3. Deutonymph of Gynaeseius liturivorus (Ehara). a – Dorsal shield and peritreme; b – Chelicera.

Dorsum — (Fig. 3a) Dorsal shield 301 (250 – 338) long and 169 (155 – 188) wide at level of s4 with no solenostomes and no poroids visible. The dorsal shield bears 14 pairs of dorsal setae and 2 pairs of sub-lateral setae: j1 28 (25 – 33), j3 31 (28 – 35), j4 4 (3 – 6), j5 4 (3 – 6), j6 6 (5 – 8), J2 9 (8 – 10), J5 5 (4 – 5), z2 5 (4 – 7), z4 6 (5 – 8), z5 4 (3 – 6), Z4 12 (10 – 13), Z5 31 (28 – 35), s4 17 (15 – 18), S2 9 (7 – 10), r3 8 (6 – 8), R1 6 (5 – 8). All setae smooth.

Peritreme — (Fig. 3a) Extending to a level between z4 and z2, closer to z2.

Venter — All ventral shields very smooth not reticulated with margins not visible and so no drawings possible. Distances between st1 – st1 44 (40 – 47), st2 – st2 64 (63 – 65), st3 - st3 59 (55 – 63), st1 – st3 80, st4 - st4 53 (50 – 55), st5 – st5 49 (47 – 50). Ventrianal shield with three pairs of pre-anal setae, JV1, JV2, and ZV2, and a pair of small oblong pores 21 (20 – 23) apart. Membrane surrounding ventrianal shield with one pair of setae JV5 smooth; ventrianal shield 94 (90 – 100) long, 54 (53 – 55) wide at anterior corners and 52 (50 – 53) wide at level of anus. JV5 15 long, smooth.

Chelicera — (Fig. 3b) Fixed digit 23 (22 – 25) long, with 9 strong teeth and movable digit 25 (23 – 28) long, with 2 small teeth.

Legs — Legs and macrosetae like in females but with different dimensions: SgeI 33 (28 – 35), SgeII 30 (28 – 35), SgeIII 33 (30 – 35), StiIII 34 (30 – 35), SgeIV 49 (48 – 50), StiIV 51 (45 – 55), and StIV 54 (53 – 55). Chaetotactic formula of genu II and III similar to that of females.

Table 10. Character measurements of adult females of Gynaeseius liturivorus collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined — Muoi in all experimental plots (aasl 66 m, lat. 21°54' N, long. 104°38' E), 19 ♀♀ + 4 deutonymphs on Manihot esculenta (Euphorbiaceae), 20/VII/2017.

Voucher specimens — 19 ♀♀ + 4 deutonymphs in 2 different slides deposited in CBGP, in Montpellier SupAgro Acarology collection, France.

Remarks — This species was found on Manihot esculenta in Vietnam. It is a type-III predator and is considered of interest for thrips control on grape infested with Scirtothrips dorsalis Hood (Shibao et al. 2004) and on various plants with Frankliniella occidentalis (Pergande) and Thrips palmi Karny (Mochizuki 2009). Gynaeseius liturivorus fed on the larvae of these thrips species. Females consumed an average of 7.4 - 19.4 first-stadium larvae of these thrips within the first 24 hrs and laid an average number of 1.6 - 6.8 eggs within 24-48 hrs. These data suggest that G. liturivorus would be a promising BCA against thrips (Mochizuki 2009).

All measurements obtained on female specimens collected during this study (Table 10) agree well with measurements obtained from female specimens collected in other countries, especially with type specimens from Japan and Thailand. Specimens of Taiwan have shorter setae while specimens of Indonesia and Papua New Guinea have longer setae.

It is interesting to notice that in deutonymph specimens some setae are longer than those of female specimens, especially j1, j3, Z5, SgeII, SgeIV, StIV, shorter peritremes and chelicerae and a lower number of teeth than female specimens on both digits of chelicerae.

Genus Euseius Wainstein

Amblyseius (Amblyseius) section Euseius, Wainstein, 1962: 15; Euseius De Leon, 1967: 86.

Euseius ovaloides (Blommers)

Amblyseius (Amblyseius) ovaloides Blommers 1974: 147.

Euseius ovaloides Moraes et al. 1986: 51; 2004b: 78; Chant & McMurtry 2005a: 215; 2007: 121.

Table 11. Character measurements of adult females of Euseius ovaloides collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi in P6 plot (aasl 66 m, lat. 21°54'55'' N, long. 104°38'22'' E), 1 ♀ + 1 ♂ (in too bad state for doing measurements) on Vernicia montana (Euphorbiaceae), 20/VII/2017.

Remarks: All measurements obtained on the single female specimen collected during this study agree well with measurements obtained from female specimens collected in other countries.

Euseius ovaloides was described by Blommers (1974) from specimens collected on Citrus hystrix and Persea americana in Madagascar. Like all Euseius species, this species belongs to the type IV (polliniphagous generalist predators) of McMurtry and Croft (1997) and McMurtry et al. (2013). The species has been occasionally recorded from Madagascar (Blommers, 1974), Papua-New Guinea (Schicha and Gutierrez 1985), Seychelles (Schicha, 1987), Reunion Island, (Quilici et al., 1997, 2000), Guadeloupe, Martinique and Marie-Galante (Moraes et al., 2000; Kreiter et al., 2006) on various plants, though its biology remains unknown. It is suspected to be a poor predator of tetranychid mites (Gutierrez and Etienne, 1986) but can be considered as a potentially good predator of thrips and of whiteflies. This is one of the more common species on La Réunion Island.

This is the first mention of that species in Vietnam.

Measurements of the single female specimen collected during this study are provided in table 11 and compared with measurements obtained from specimens collected in other countries of Indian Ocean and the Caribbean.

Subfamily Phytoseiinae Berlese

Phytoseiini Berlese 1913: 3; Phytoseiinae, Vitzthum 1941: 768.

Genus Phytoseius Ribaga

Phytoseius Ribaga, 1904: 177.

Phytoseius coheni Swirski & Shechter

Phytoseius (Dubininellus) macropilis coheni Swirski & Shechter 1961: 104.

Phytoseius (Phytoseius) macropilis coheni, Ehara 1966: 26.

Phytoseius (Dubininellus) coheni, Swirski & Golan 1967: 226; Wu 1997: 153.

Phytoseius (Phytoseius) coheni, Moraes et al. 1986: 219.

Phytoseius coheni, Moraes et al. 2004a: 235; Chant & McMurtry 2007: 129.

Phytoseius hawaiiensis Prasad 1968: 1460 (synonymy according to Denmark & Evans 2011: 301).

Phytoseius huangi Ehara 1970: 62 (synonymy according to Ehara 2002: 40).

Phytoseius jianfengensis Chen, Chu & Zhou 1980: 15 (synonymy according to Wu 1997: 153).

Table 12. Character measurements of adult females of Phytoseius coheni collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi in PM1 plot (aasl 66 m, lat. 21°54' N, long. 104°38' E), 1 ♀ on an unknown plant support, 17/V/2017; in P7 plot (aasl 66 m, lat. 21°54'51'' N, long. 104°38'22'' E), 1 ♀ on an unknown plant support, 21/VII/2017; in P16 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 1 ♀ on Tephrosia candida (Fabaceae), 22/VII/2017.

Remarks: This species was described from Hong-Kong by Swirski and Shechter (1961) collected on a wide range of plants and very common on citrus.

Although species of the genus Phytoseius are considered to belong to the type III (polyphagous generalist predators) of McMurtry and Croft (1997) and McMurtry et al. (2013), its specific biology is totally unknown.

This is the first mention of that species in Vietnam.

Measurements of specimens collected during this study are provided in table 12 and compared with measurements obtained from specimens collected in other countries of Asia and Indian Ocean. Measurements obtained during this study agree well with most obtained from female specimens collected in other countries.

Phytoseius hongkongensis Swirski & Shechter

Phytoseius (Phytoseius) hongkongensis Swirski & Shechter 1961: 99; Amitai & Swirski 1966: 22.

Phytoseius (Pennaseius) hongkongensis Ehara 1966: 25; Ehara 1972: 169; Moraes et al. 1986: 211.

Phytoseius hongkongensis Moraes et al. 2004a: 240; Chant & McMurtry 2007: 129.

Table 13. Character measurements of adult females and males of Phytoseius hongkongensis collected in this study and those reported in previous studies (localities followed by the number of specimens measured).

Specimens examined: Muoi in P16 plot (aasl 66 m, lat. 21°54'46'' N, long. 104°38'18'' E), 2 ♀♀ on Chromolaena odorata (Asteraceae), 18/V/2017; in P11 plot (aasl 66 m, lat. 21°54'30'' N, long. 104°38'14'' E), 1 ♀ on Mallotus canii (Euphorbiaceae), 31/V/2017; in P14 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'45'' E), 2 ♂♂ on C. odorata (Asteraceae) and 1 ♂ in an unknown host plant, 2/VI/2017; in P15 plot (aasl 66 m, lat. 21°54'56'' N, long. 104°38'46'' E), 1 ♀ on C. odorata (Asteraceae), 2/VI/2017 and 1 ♀ + 1 ♂ on Rubus alceifolius (Rosaceae), 3/VI/2017.

Remarks: This species was described from specimens collected on Heterosmilax gaudichaudiana and Urena lobata in Victoria Mount Forest, Hong Kong Island, Hong Kong.

Although species of the genus Phytoseius are considered to belong to the type III (polyphagous generalist predators) of McMurtry and Croft (1997) and McMurtry et al. (2013), its specific biology is totally unknown.

This is the first mention of that species in Vietnam.

Measurements of specimens collected during this study are provided in table 13 for females and males and compared with measurements obtained from specimens collected in other countries of Asia and Africa.

Measurements obtained agree well with most of those obtained previously, with slightly shorter dimensions, especially in male specimens.

Phytoseius tixierae Kreiter n. sp.

ZOOBANK: 7B2DE1ED-FE36-488E-87B2-969ADBB09507

Figs. 4 a – d, 5 a – b, 6 a – c

DiagnosePhytoseius tixierae Kreiter n. sp. lacks setae J2 and R1 and consequently belongs to the horridus species group. This species is unique by the following characters: z2 and Z4 smooth, s6 only slightly serrated, setae j4, j5, j6, J5 also smooth, setae s6, Z4 and Z5 subequal, s6 being the longest seta, four macrosetae on leg IV spatulate, SgeIV being the shortest and StiIV being the longest, with StIV and SttIV being intermediate and subequal, setae j1 and j3 almost equal, setae JV5 very short, < 20, peritreme reaching the level of setae j1.

Description of the adult female of Phytoseius tixierae Kreiter n. sp.

n = 4 (Figs. 4 a – b, Figs. 5 a – b)

Figure 4. Female of Phytoseius tixierae Kreiter n. sp.. a – Dorsal shield and peritreme; b – Ventral shields.

(in bold, average measurements)

Dorsum — (Fig. 4a) Dorsal shield rugose 271 (250 – 280) long and 130 (125 – 140) wide, smooth, with no visible solenostome, 8 pairs of poorly visible poroids, 14 pairs of dorsal setae and one pair of sub-lateral setae on the dorsal shield: j1 23 (21 – 23), j3 18 (15 – 23), j4 10 (10 – 11), j5 10 (10 – 11), j6 11 (10 – 13), J5 9 (8 – 9), z2 12 (10 – 13), z3 20 (18 – 25), z4 19 (18 – 23), z5 12 (9 – 13), Z4 57 (48 – 63), Z5 53 (48 – 55), s4 44 (43 – 45), s6 59 (55 – 63), r3 30 (28 – 30). Setae z2, j4, j5, j6, z5 and Z4 smooth, setae s6 very slightly serrated at the distal third of setae, setae j1, j3, z3, z4, r3, s4 and Z5 serrated.

Peritreme — (Fig. 4a) Extending to the level of setae j1.

Venter — (Fig. 4b) All shields smooth.

Sternal shield with three pairs of setae and two pairs of lyrifissures; one pair of sternal setae on metasternal shields with a pair of pores; posterior margin straight. Distances between st1-st1 46 (43 – 50), st2-st2 53 (50 – 55), st3-st3 59 (43 – 68), st1-st3 58 (55 – 60), st4-st4 62 (50 – 75).

Genital shield length 101 (98 – 105), st5-St5 56 (50 – 60), width at the level of the posterior corners ot the genital shield 80 (78 – 82).

One pair of narrow metapodal shields 24 (20 – 28) long and 2 wide.

Ventrianal shield with three pairs of preanal setae (JV1, JV2 and ZV2) and a pair of pores. Membrane surrounding ventrianal shield with two pairs of setae ( ZV3 and JV5), and no visible poroids in our specimens; ventrianal shield 92 (85 – 98) long, 51 (50 – 53) wide at level of anterior corners (ZV2), and 44 (43 – 45) wide at level of anus.

JV5 short, 19 (15 – 20) long, and serrated.

Chelicera — Chelicerae not clearly visible and therefore not drawn. Fixed digit 17 (14 – 20) long with apparently 2 teeth; and movable digit 18 (15 – 20) long with apparently 1 tooth.

Figure 5. Female of Phytoseius tixierae Kreiter n. sp.. a – Insemination apparatus; b – Genu, tibia and basitarsus of the leg IV.

Spermatheca — (Fig. 5a) Spermatheca with calyx pocular (Denmark and Evans 2011), 10 long and 5 wide, and a small atrium. Ductus minor not visible but large ductus major well visible in all specimens.

Legs — (Fig. 5b) Four macrosetae on leg IV, all spatulate: SgeIV 10, StiIV 39 (38 – 40), StIV 21 (20 – 23), SttIV 19 (18 – 20). Genu II with 7 setae and Genu III with 6 setae, chaetotactic formula of genu II: 2-2/0, 2/0-1; genu III: 1-2/0, 2/0-1.

Description of the adult male of Phytoseius tixierae Kreiter n. sp.

n = 1 (Figs 6 a – c)

Figure 6. Male of Phytoseius tixierae Kreiter n. sp.. a – Dorsal shield and peritreme; b – Ventral shields; c – Spermatodactyl.

Dorsum — (Fig. 6a) Dorsal shield rugose 200 long and 113 wide, with no visible solenostome. The dorsal shield bears 14 pairs of dorsal setae and 1 pair of sub-lateral setae situated on the dorsal shield: j1 20, j3 16, j4 10, j5 8, j6 9, J5 6, z2 10, z3 18, z4 18, z5 10, Z4 30, Z5 28, s4 35, s6 35, r3 25. Setae z2, j4, j5, j6, z5 and Z4 smooth, setae s6 very slightly serrated, setae j1, j3, z3, z4, r3, s4 and Z5 serrated, like in the female.

Peritreme — (Fig. 6a) Extending to the level of setae j1.

Venter — (Fig. 6b) Sternal shield smooth. Distances between st1 – st1 43, st2 – st2 48, st3 – st3 50, st1 – st5 90, st4 – st4 43, st5 – st5 35. Ventrianal shield with three pairs of pre-anal setae, JV1, JV2 and ZV2. Pre-anal pores absent. Membrane surrounding ventrianal shield with one pair of setae JV5; ventrianal shield 75 long, 90 wide at anterior corners and 50 wide at level of paranal setae. Short setae JV5 serrated, 10 long.

Chelicera – Fixed digit 15 long, with 2 teeth visible and movable digit 15 long with 1 tooth visible. Spermatodactyl circumflex accent shaped, shaft (Fig. 6c) 11, toe 9.

Legs — Legs IV with four spatulate macrosetae like in the female: SgeIV 5, StiIV 10, StIV 15, SttIV 15. Chaetotactic formula of genu II and III similar to that of females.

Specimens examined — Muoi in P4 experimental plot (aasl 66 m, lat. 21°54'41'' N, long. 104°38'7'' E), 1 ♀ + 1 ♂, 12/05/2017 and in P12-P13 plots (aasl 66 m, lat. 21°54'50'' N, long. 104°38'45'' E), 3 ♀♀ on Bambusodae sp. (Poaceae).

Type material — The holotype female, 3 paratype females, and 1 paratype male on 3 slides deposited in CBGP, in Montpellier SupAgro Acarology collection, France.

Etymology — The name ''tixierae'' refers to our colleague Professor-Dr Marie-Stéphane Tixier (Montpellier SupAgro) to whom this species is dedicated for her huge contribution to the knowledge of mites and especially to the taxonomy of Phytoseiidae and her great assistance with this paper.

Remarks — Measurements of specimens collected during this study are provided in table 14 for females and for the single male and compared with measurements obtained from specimens of the closest described species.

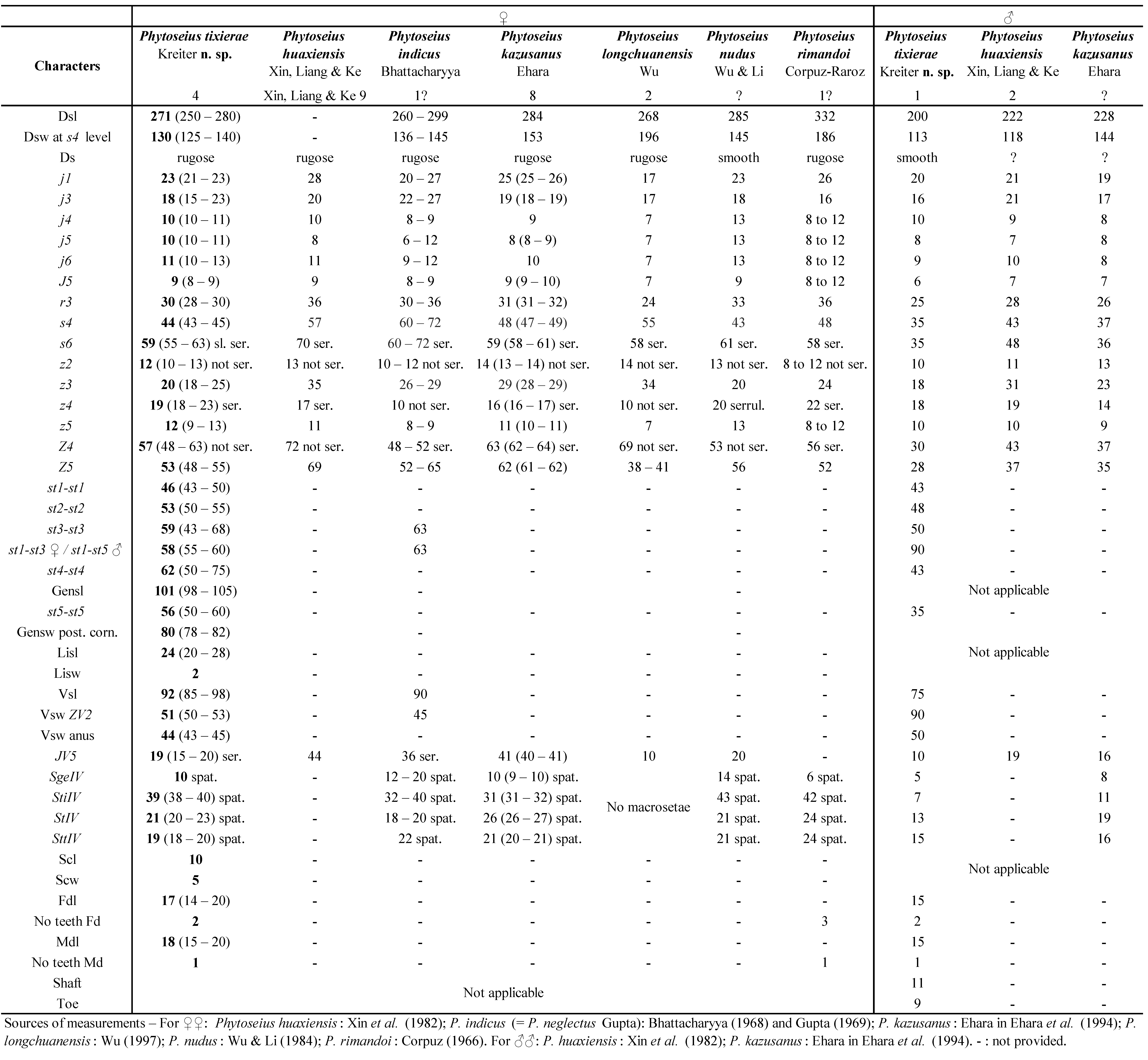

Table 14. Character measurements of adult females and one adult male of Phytoseius tixierae Kreiter n. sp. collected in this study and close species reported in previous studies (localities followed by the number of specimens measured).

Females of Phytoseius tixierae Kreiter n. sp. (Table 14) resembles that of P. huaxiensis Xin, Liang and Ke but differs in having s6 only slightly serrated, shorter s4, s6, Z4, Z5 and JV5. It also resembles P. indicus Bhattacharyya but differs in having s6 only slightly serrated, shorter s4, s6, Z4, JV5, Z4 not serrated but z4 serrated and longer. It is also related to P. kazusanus Ehara but differs in having s6 only slightly serrated, z4 serrated, longer Z5, JV5 and StIV and Z4 not serrated. It is also very close to P. longchuanensis Wu but differs from this species by having longer setae except s4 and Z4, s6 only slightly serrated, z4 serrated, longer JV5 and 4 macrosetae on the leg IV instead of zero. It is also very similar to P. rimandoi Corpuz but differs from this species in having shorter s6, Z4 smooth. Finally, the closest species is P. nudus Wu and Li but the new species differs from this species in having z4 strongly serrated (only slightly serrated in the former), and the dorsal shield rugose (smooth in the former).

Males of Phytoseius tixierae Kreiter n. sp. (Table 14) also resembles to the males of P. huaxiensis and P. kazusanus that are the only species for which males have been described. But males of the new species differ from males of the former species in having s6 only slightly serrated, and shorter s4, s6, z3, Z4, Z5 and JV5. Males of the new species differ from males of P. kazusanus in having s6 only slightly serrated, shorter Z4, Z5 and JV5, z4 serrated and longer and Z4 not serrated.

Conclusion

The fauna of Phytoseiidae of Vietnam is now composed of 20 species, 12 already known from previous studies and 8 added in this paper. As this number of species is still far below the anticipated real number of phytoseiid species present in this tropical biodiversity hotspot, follow-up survey work is urgently needed.

Acknowledgements

We are very grateful to Nguyễn Tuấn Cường for identification of plant species on which phytoseiid mites were collected. The International Center for Tropical Agriculture (CIAT, CGIAR) graciously provided logistical support for the in-country visit of M.-C. Bopp and facilitated the necessary permits for field visits. Financial support for the field collections in Vietnam was provided through the CGIAR research program on Roots, Tubers and Bananas - CRP-RTB and the CGIAR research program on Climate Change, Agriculture and Food Security - i.e., CRP-CCAFS. We are also very grateful to Professor-Dr Marie-Stéphane Tixier (Montpellier SupAgro) for very valuable comments of an earlier version of this manuscript.

References

Akyazi R., Ueckermann E.A., Soysal M. 2016. The new distribution of Amblyseius herbicolus in Turkey (Parasitiformes, Phytoseiidae) with a key of Amblyseius species found in Turkey. Acarologia, 56(2): 237-244. doi:10.1051/acarologia/20162241

Amitai S., Swirski E. 1966. Illustrations of spermathecae in several previously described phytoseiid mites (Acarina) from Hong Kong and Israel. The Israel J. Agric. Res., 16: 19-24.

Athias-Henriot C. 1975. Nouvelles notes sur les Amblyseiini. II. Le relevé organotaxique de La face dorsale adulte (Gamasides protoadéniques, Phytoseiidae). Acarologia, 17(1): 20-29.

Beard J.J. 2001. A review of Australian Neoseiulus Hughes and Typhlodromips De Leon (Acari: Phytoseiidae: Amblyseiinae). Invert. Tax., 15: 73-158. doi:10.1071/IT99017

Berlese A. 1913. Systema Acarorum genera in familiis suis disposita. Acaroteca Italica, 1-2: 3-19.

Berlese A. 1914. Acari nuovi. Manipulus IX. Redia, 10: 113-150.

Bhattacharyya S.K. 1968. Two new phytoseiid mites from eastern India (Acarina: Phytoseiidae). J. Bombay Nat. Hist. Soc., 65(3): 677-680.

Blommers L. 1974. Species of the genus Amblyseius Berlese, 1914, from Tamatave, east Madagascar (Acarina: Phytoseiidae). Bull. Zool. Mus. Univ. Amsterdam, 3: 143-155.

Blommers L. 1976. Some Phytoseiidae (Acarina: Mesostigmata) from Madagascar, with descriptions of eight new species and notes on their biology. Bijdragen tot Dierkunde, 46(1): 80-106. doi:10.1163/26660644-04601005

Carmona M.M. 1968. Contribuicao para o estudo de alguns acaros fitofagos e depredadores, de Angola. Agron. Lusit., 29: 267-288 + 12 plates.

Chant D.A. 1957. Note on the status of some genera in the family Phytoseiidae (Acarina). Can. Entomol., 89(11), 528-532. doi:10.4039/Ent89528-11

Chant D.A. 1959. Phytoseiid mites (Acarina: Phytoseiidae). Part I. Bionomics of seven species in southeastern England. Part II. A taxonomic review of the family Phytoseiidae, with descriptions of thirty-eight new species. Can. Entomol., 61(12): 1-166.

Chant D.A., Hansell R.I.C. 1971. The genus Amblyseius (Acarina: Phytoseiidae) in Canada and Alaska. Can. J. Zool., 49(5), 703-758. doi:10.1139/z71-110

Chant D.A., McMurtry J.A. 1994. A review of the subfamilies Phytoseiinae and Typhlodrominae (Acari: Phytoseiidae). Intern. J. Acarol., 20(4): 223-310. doi:10.1080/01647959408684022

Chant D.A., McMurtry J.A. 2003a. A review of the subfamily Amblyseiinae Muma (Acari: Phytoseiidae): Part I. Neoseiulini new tribe. Intern. J. Acarol., 29(1): 3-46. doi:10.1080/01647950308684319

Chant D.A., McMurtry J.A. 2003b. A review of the subfamily Amblyseiinae Muma (Acari: Phytoseiidae): Part II. The tribe Kampimodromini Kolodochka. Intern. J. Acarol., 29(3): 179-224. doi:10.1080/01647950308684331

Chant D.A., McMurtry J.A. 2004. A review of the subfamily Amblyseiinae Muma (Acari: Phytoseiidae): Part III. The tribe Amblyseiini Wainstein, subtribe Amblyseiina n. subtribe. Intern. J. Acarol., 30(3): 171-228. doi:10.1080/01647950408684388

Chant D.A., McMurtry J.A. 2005a. A review of the subfamily Amblyseiina Muma (Acari: Phytoseiidae): Part V. Tribe Amblyseiini, subtribe Proprioseiopsina Chant & McMurtry. Intern. J. Acarol., 31(1): 3-22. doi:10.1080/01647950508684412

Chant D.A., McMurtry J.A. 2005b. A review of the subfamily Amblyseiinae Muma (Acari: Phytoseiidae) Part VI. The tribe Euseiini n. tribe, subtribes Typhlodromalina n. subtribe, Euseiina n. subtribe, and Ricoseiina n. subtribe. Intern. J. Acarol., 31(3): 187-224. doi:10.1080/01647950508684424

Chant D.A., McMurtry J.A. 2006. A review of the subfamily Amblyseiinae Muma (Acari: Phytoseiidae): Part VIII. The tribes Macroseiini Chant, Denmark and Baker, Phytoseiulini n. tribe, Afroseiulini n. tribe and Indoseiulini Ehara and Amano. Intern. J. Acarol., 32(1), 13-25. doi:10.1080/01647950608684439

Chant D.A., McMurtry J.A. 2007. Illustrated keys and diagnoses for the genera and subgenera of the Phytoseiidae of the world (Acari: Mesostigmata). Indira Publishing House, West Bloomfield, 219pp.

Chant D.A., Yoshida-Shaul E. 1991. Adult ventral setal patterns in the family Phytoseiidae (Acari: Gamasina). Intern. J. Acarol., 17(3): 187-199. doi:10.1080/01647959108683906

Chant D.A., Yoshida-Shaul E. (1992) Adult idiosomal setal patterns in the family Phytoseiidae (Acari: Gamasina). Intern. J. Acarol., 18(3): 177-193. doi:10.1080/01647959208683949

Chaudhri W.M. 1968. Six new species of mites of the genus Amblyseius (Phytoseiidae) from Pakistan. Acarologia, 10: 550-562.

Chaudhri W.M., Akbar S., Rasool A. 1979. Studies on the predatory leaf inhabiting mites of Pakistan. University of Agriculture, Faisalabad, Pakistan, 243 pp.

Chen S.-W., Chu C.-M., Zhou F.-W. 1980. On the phytoseiid mites of Guangdong (Acarina: Phytoseiidae). Journal of Jiagxi University, 4(1), 15–20 [in Chinese with English abstract]

Corpuz L.A. 1966. Seven new species of mites of the genera Typhlodromus and Phytoseius (Phytoseiidae: Acarina). Philipp. Agricult., 50, 729-738.

Corpuz L.A., Rimando L. 1966. Some Philippine Amblyseiinae (Phytoseiidae: Acarina). Philippine Agric., 50: 114-136.

Corpuz-Raros L.A. 2005. Some new species records, discovery of males in two species and first report of Wolbachia infection in predatory mites (Phytoseiidae, Acari) from the Philippines. Philipp. Agric. Sc., 88(4), 431-439.

Corpuz-Raros L.A., Garcia R.C. 1994. Two additional records and a key to the species of Phytoseius (Phytoseiidae, Acari) from the Philippines. Philippine Agric., 77(4): 473-479.

Daneshvar H., Denmark H.A. 1982. Phytoseiids of Iran (Acarina: Phytoseiidae). Intern. J. Acarol., 8(1): 3-14. doi:10.1080/01647958208683272

De Leon D. 1967. Some mites of the Caribbean Area. Part I. Acarina on plants in Trinidad, West Indies. Allen Press Inc., Lawrence, Kansas, USA: 1-66.

Demite P.R., McMurtry J.A., Moraes G.J. de. 2014. Phytoseiidae Database: a website for taxonomic and distributional information on phytoseiid mites (Acari). Zootaxa, 3795 (5): 571-577. doi:10.11646/zootaxa.3795.5.6

Demite P.R., Moraes G.J. de, McMurtry J.A., Denmark H.A., Castilho R.C. 2020. Phytoseiidae Database. Available from: www.lea.esalq.usp.br/phytoseiidae (last access 10/01/2020)

Denmark H.A. 1966. Revision of the genus Phytoseius Ribaga, 1904 (Acarina: Phytoseiidae). Fla Dep. Agric. Bull., 6: 1-105.

Denmark H.A., Evans G.A. 2011. Phytoseiidae of North America and Hawaii (Acari: Mesostigmata). Indira Publishing House, West Bloomfield, USA, 451 pp.

Denmark H.A., Kolodochka L.A. 1993. Revision of the genus Indoseiulus Ehara (Acari: Phytoseiidae). Intern. J. Acarol., 19(3): 249-257. doi:10.1080/01647959308683551

Denmark H.A., Muma M.H. 1972. Some Phytoseiidae of Colombia (Acarina: Phytoseiidae). Fla Entomol., 55(1), 19-29. doi:10.2307/3493637

Denmark H.A., Muma M.H. 1989. A revision of the genus Amblyseius Berlese, 1914 (Acari: Phytoseiidae). Occasional Papers of the Florida State Collection of Arthropods, USA, 4, 149 pp.

Duarte M.V.A, Venzon M., Bittencourt M.C.de S., Rodriguez-Cruz F.A., Pallini A., Janssen A. 2015. Alternative food promotes broad mite control on chilli pepper plants. BioControl, 60: 817-825. doi:10.1007/s10526-015-9688-x

Ehara S. 1958. Three predatory mites of the genus Typhlodromus from Japan (Phytoseiidae). Annot. Zool. Japon., 31: 53-57.

Ehara S. 1966. A tentative catalogue of predatory mites of Phytoseiidae known from Asia, with descriptions of five new species from Japan. Mushi, 39: 9-30.

Ehara S. 1967. Phytoseiid mites from Okinawa Island (Acarina: Mesostigmata). Mushi, 40(6): 67-82.

Ehara S. 1970. Phytoseiid mites from Taiwan (Acarina: Mesostigmata). Mushi, 43(6), 55– 63.

Ehara S. 1972. Some phytoseiid mites from Japan, with descriptions of thirteen new species (Acarina: Mesostigmata). Mushi, 46(12): 137-173.

Ehara S. 1982. Two new species of phytoseiid mites from Japan (Acarina: Phytoseiidae). Appl. Entomol. Zool., 17: 40-45. doi:10.1303/aez.17.40

Ehara S. 1985. Five species of phytoseiid mites from Japan with descriptions of two new species (Acarina, Phytoseiidae). Zool. Sci., 2(1): 115-121.

Ehara S. 2002. Some phytoseiid mites (Arachnida: Acari: Phytoseiidae) from west Malaysia. Species Div., 7: 29-46. doi:10.12782/specdiv.7.29

Ehara S. 2005. A collection of phytoseiid mites (Acari: Phytoseiidae) from Java with description of a new species. Acta Arachnol., 54(1), 31-39. doi:10.2476/asjaa.54.31

Ehara S., Amano H. 1998. A revision of the mite family Phytoseiidae in Japan (Acari: Gamasina), with remarks on its biology. Species Div., 3(1): 25-73. doi:10.12782/specdiv.3.25

Ehara S., Amano H. 2002. Some Japanese phytoseiid mites (Acari: Phytoseiidae) mostly from Ishigaki and Taketomi Islands. Entomol. Sci., 5(3): 321-329.

Ehara S., Bhandhufalck A. 1977. Phytoseiid mites of Thailand (Acarina: Mesostigmata). J. Fac. Educ., Tottori Univ., Natur. Sci., 27(2): 43-82.

Ehara S., Gotoh T., Amano, H. 2000. Two Japanese species of the genus Paraphytoseius Swirski and Shechter (Acari: Phytoseiidae). J. Acarol. Soc. Japan, 9(2): 113-118. doi:10.2300/acari.9.113

Ehara S., Lee L.H.Y. 1971. Mites associated with plants in Hong Kong. J. Fac. Educ., Tottori Univ., Natur. Sci., 22(2): 61-78.

Ehara S., Okada Y., Kato H. 1994. Contribution to the knowledge of the mite family Phytoseiidae in Japan (Acari: Gamasina). J. Fac. Educ., Tottori Univ., Natur. Sci., 42(2): 119-160.

El-Banhawy E.M. 1984. Description of some phytoseiid mites from Brazil (Acarina: Phytoseiidae). Acarologia, 25(2): 125-144.

El-Banhawy E.M., Knapp M. 2011. Mites of the family Phytoseiidae Berlese from Kenya (Acari: Mesostigmata). Zootaxa, 2945: 1-176. doi:10.11646/zootaxa.2945.1.1

Evans G.O. 1952. A new typhlodromid mite predaceous on Tetranychus bimaculatus Harvey in Indonesia. Ann. Mag. Natur. Hist., 5: 413-416. doi:10.1080/00222935208654311

Evans G.O. 1953. On some mites of the genus Typhlodromus Scheuten, 1857, from S. E. Asia. Ann. Mag. Natur. Hist., 6, 449-467. doi:10.1080/00222935308654444

Ferragut F., Baumann J. 2019. New phytoseiid mites (Mesostigmata: Phytoseiidae) of Mauritius, with the description of two new species. Syst. Appl. Acarol., 24(5): 825-856. doi:10.11158/saa.24.5.8

Garman P. 1948. Mite species from apple trees in Connecticut. Connect. Agric. Exp. St., Bull., 520, 1-27.

Ghai S., Menon M.G.R. 1969. Taxonomic studies on Indian mites of the family Phytoseiidae (Acarina). II. Two new genera and species of Phytoseiidae. Orient. Ins., 3, 347-352. doi:10.1080/00305316.1969.10433928

Gonzalez R.H., Schuster R.O. 1962. Especies de la familia Phytoseiidae en Chile I. (Acarina: Mesostigmata). Bol. Tecn. Est. Exp. Agron., 16, 1-35.

Gupta S.K. 1969. Three new species of the genus Phytoseius (Acarina: Phytoseiidae) from India. Isr. J. Agric. Res., 19: 115-120.

Gupta S.K. 1975. Mites of the genus Amblyseius (Acarina: Phytoseiidae) from India with descriptions of eight new species. Intern. J. Acarol., 1(2): 26-45. doi:10.1080/01647957508683746

Gupta S.K. 1981. On a collection of Phytoseiidae (Acari: Mesostigmata) from Himachal Pradesh (India), with descriptions of two new species. Ind. J. Acarol., 5, 32-36.

Gupta S.K. 1986. Fauna of India (Acari: Mesostigmata) Family Phytoseiidae. Zoological Survey of India, Calcutta, India, 350 pp.

Gutierrez J., Etienne J. 1986. Les Tetranychidae de I'île de la Réunion et quelques-uns de leurs prédateurs. Agron. Trop., 41(1): 84-91.

Hirschmann W. 1962. Gangystematik der Parasitiformes. Acarologie Schriftenreihe fur Vergleichende Milbenkunde, Hirschmann-Verlag, Furth/Bay, 5(5-6), 80 pp.+ 32 plates.

Ho C.C., Lo K.C. 1989. Contribution to the knowledge of the genus Paraphytoseius Swirski and Shechter (Acarina: Phytoseiidae) in Taiwan. J. Agric. Res. China, 38(1): 88-99.

Hughes A.M. 1948. The mites associated with stored food products. Ministry of Agriculture and Fisheries, H. M. Stationary Office, London, 168 pp.

Huyen L.T., Tung N.D., Lan D.H., Chi C.V., De Clercq P., Dinh N.V. 2017. Life table parameters and development of Neoseiulus longispinosus (Acari: Phytoseiidae) reared on citrus red mite, Panonychus citri (Acari: Tetranychidae) at different temperatures. Syst. Appl. Acarol., 22(9): 1316-1326. doi:10.11158/saa.22.9.3

Jung C., Kim. S., Lee S.W., Lee J.-H. 2003. Phytoseiid mites (Acari: Phytoseiidae) from Korean apple orchards and their ecological notes. Korean J. Appl. Entomol., 42(3): 185-195.

Kade N., Gueye-Ndiaye A., Duverney C., Moraes G.J. de. 2011. Phytoseiid mites (Acari: Phytoseiidae) from Senegal. Acarologia, 51(1): 133-138. doi:10.1051/acarologia/20112001

Karg W. 1982. Diagnostic and systematics of predatory mites of the family Phytoseiidae Berlese in orchards. Zool. Jahr. Syst., 109, 188-210.

Karg W. 1983. Systematische untersuchung der Gattungen und Untergattungen der Raubmilbenfamilie Phytoseiidae Berlese, 1916, mit der beschreibung von 8 neuen Arten. Mitteil. Zool. Mus. Berlin, 59(2): 293-328. doi:10.1002/mmnz.4830590203

Karg W. 1991. Die Raubmilbenarten der Phytoseiidae Berlese (Acarina) Mitteleuropas sowie angrenzender Gebiete. Zool. Jahr. Syst., 118(1): 1-64.

Karg W., Oomen-Kalsbeek F. 1987. Neue Raubmilbenarten der Gattung Amblyseius Berlese (Acarina, Parasitiformes, Phytoseiidae) - Antagonisten der unechten Spinnmilbe Brevipalpus phoenicis Geijskes. Zool. Jahr. Syst., 114(1): 131-140.

Kennett C.E. 1958. Some predacious mites of the subfamilies Phytoseiinae and Aceosejinae (Acarina: Phytoseiidae, Aceosejidae) from central California with descriptions of new species. Ann. Entomol. Soc. Amer., 51, 471-479. doi:10.1093/aesa/51.5.471

Kolodochka L.A. 1998. Two new tribes and the main results of a revision of Palearctic phytoseiid mites (Parasitiformes, Phytoseiidae) with the family system concept. Vest. Zool., 32(1-2): 51-63 [in Russian].

Kolodochka L.A., Denmark H.A. 1995. A new genus of phytoseiid mites (Acari, Phytoseiidae). Zh. Ukrainsíkogo Entomol. Tovar., 1(3-4), 19-26 [in Russian].

Kreiter S. Amiri K., Douin M. Bohinc T., Trdan S., Tixier M.-S. 2020a. Phytoseiid mites of Slovenia (Acari: Mesostigmata): new records and first description of the male of Amblyseius microorientalis. Acarologia 60(2): 203-242. doi:10.24349/acarologia/20204364

Kreiter S., Fontaine O., Payet R.-M. 2018a. New records of Phytoseiidae (Acari: Mesostigmata) from Mauritius. Acarologia; 58(4): 773-785. doi:10.24349/acarologia/20184273

Kreiter S., Mailloux J., Tixier M.-S., Le Bellec F., Douin M., Guichou S., Etienne J. 2013. New phytoseiid mites of the French West Indies, with description of a new species, and new records (Acari: Mesostigmata). Acarologia, 53(3): 285-303. doi:10.1051/acarologia/20132095

Kreiter S., Payet R.-M., Douin M., Fontaine O., Fillâtre J., Le Bellec F. 2020b. Phytoseiidae of La Réunion Island (Acari: Mesostigmata): three new species and two males described, new synonymies, and new records. Acarologia, 60(1): 111-195. doi:10.24349/acarologia/20204361

Kreiter S., Payet R.-M., Fillâtre J., Abdou Azali H. 2018b. First records of Phytoseiidae from one island of the Comoros Archipelago. Acarologia, 58(3): 529-545. doi:10.24349/acarologia/20184256

Kreiter S., Tixier M.-S., Etienne J. 2006. New records of phytoseiid mites (Acari: Mesostigmata) from the French Antilles, with description of Neoseiulus cecileae sp. nov. Zootaxa, 1294: 1-27. doi:10.11646/zootaxa.1294.1.1

Kreiter S., Zriki Z., Ryckewaert P., Pancarte C., Douin M., Tixier M.-S. 2018c. New phytoseiid mites of Martinique, with redescription of four species and new records. Acarologia, 58(2): 366-407. doi:10.24349/acarologia/20184248

Lindquist E.E. 1994. Some observations on the chaetotaxy of the caudal body region of gamasine mites (Acari: Mesostigmata), with a modified notation for some ventrolateral body setae. Acarologia, 35: 323-326.

Lindquist E.E., Evans G.W. 1965. Taxonomic concepts in the Ascidae, with a modified setal nomenclature for the idiosoma of the Gamasina Acarina: Mesostigmata. Mem. Entomol. Soc. Canada; 47: 1-64. doi:10.4039/entm9747fv

Lo P.K.C. 1970. Phytoseiid mites from Taiwan (I) (Acari: Mesostigmata). Bull. Sun Yatsen Cult. Found., 5: 47-62.

Luong T.H., Nguyen D.T., Dang H.L., Cao V.C., De Clercq P., Nguyen V.D. 2017. Life table parameters and development of Neoseiulus longispinosus (Acari: Phytoseiidae) reared on citrus red mite, Panonychus citri (Acari: Tetranychidae) at different temperatures. Syst. Appl. Acarol., 22(9): 1316-1326. doi:10.11158/saa.22.9.3

Mailloux J., Le Bellec F., Kreiter S., Tixier M.-S., Dubois P. 2010. Influence of ground cover management on diversity and density of phytoseiid mites (Acari: Phytoseiidae) in Guadeloupean citrus orchards. Exp. Appl. Acarol., 52: 275-290. doi:10.1007/s10493-010-9367-7

Mason P.G., Cock M.J.W., Barratt B.I.P., Klapwijk J.N., Van Lenteren J.C., Brodeur J., Hoelmer K.A., Heimpel, G.E. 2018. Best practices for the use and exchange of invertebrate biological control genetic resources relevant for food and agriculture. BioControl, 63(1): 149-154. doi:10.1007/s10526-017-9810-3

Matthysse J.G., Denmark H.A. 1981. Some phytoseiids of Nigeria (Acarina: Mesostigmata). Fla Entomol., 64: 340-357. doi:10.2307/3494585

Meyer M.K.P., Rodrigues M.C. 1966. Acari associated with cotton in southern Africa (with reference to other plants). Garcia de Orta, Rev. Junta Invest. Ultramar, 13(2): 195-226.

McMurtry J.A., Croft B.A. 1997. Life-styles of phytoseiid mites and their roles in biological control. Ann. Rev. Entomol., 42: 291-321. doi:10.1146/annurev.ento.42.1.291

McMurtry J.A., Moraes G.J. de. 1984. Some phytoseiid mites from the South Pacific, with descriptions of new species and a definition of the Amblyseius largoensis species group. Intern. J. Acarol., 10: 27-37. doi:10.1080/01647958408683347

McMurtry J.A., Moraes G.J. de 1985. Some phytoseiid mites (Acari) of Papua New Guinea, with descriptions of six new species. Intern. J. Acarol., 11: 75-88. doi:10.1080/01647958508683399

McMurtry J.A., Moraes G.J. de, Sourassou N.F. 2013. Revision of the life styles of phytoseiid mites (Acari: Phytoseiidae) and implications for biological control strategies. Syst. Appl. Acarol., 18: 297-320. doi:10.11158/saa.18.4.1

Mochizuki M. 2009. Development, Reproduction and Prey Consumption of the Thrips Predator Gynaeseius liturivorus (Ehara) (Acari: Phytoseiidae). J. Acarol. Soc. Japan, 18(2),73-84. doi:10.2300/acari.18.73

Moraes G.J. de, Castro T.M.G. de, Kreiter S., Quilici S., Gondim Jr. M.G.C., Sá L.A. 2012. Search for natural enemies of Raoiella indica Hirst in Réunion Island (Indian Ocean). Acarologia, 52(2), 129-134. doi:10.1051/acarologia/20122043

Moraes G.J. de, Kreiter S., Lofego A.C. 2000. Plant mites (Acari) of the French Antilles. 3. Phytoseiidae (Gamasida). Acarologia, 40(3): 237-264.

Moraes G.J. de, Lopes P.C., Fernando C.P. 2004b. Phytoseiid mite (Acari: Phytoseiidae) of coconut growing areas in Sri Lanka, with descriptions of three new species. J. Acarol. Soc. Japan, 13(2): 141-160. doi:10.2300/acari.13.141

Moraes G.J. de, McMurtry J.A., Denmark H.A. 1986. A catalog of the mite family Phytoseiidae. References to taxonomy, synonymy, distribution and habitat. EMBRAPA - DDT, Brasilia, Brazil, 353 pp.

Moraes G.J. de, McMurtry J.A., Denmark H.A., Campos C.B. 2004a. A revised catalog of the mite family Phytoseiidae. Zootaxa, 434: 1-494. doi:10.11646/zootaxa.434.1.1

Moraes G.J. de, McMurtry J.A., van den Berg H., Yaninek J.S. 1989a. Phytoseiid mites (Acari: Phytoseiidae) of Kenya, with descriptions of five new species and complementary descriptions of eight species. Intern. J. Acarol., 15(2): 79-93. doi:10.1080/01647958908683829

Moraes G.J. de, McMurtry J.A., Yaninek, J.S. 1989b. Some phytoseiid mites (Acari, Phytoseiidae) from tropical Africa with description of a new species. Intern. J. Acarol., 15(2): 95-102. doi:10.1080/01647958908683830

Moraes G.J. de, Zannou I.D., Ueckermann E.A., Oliveira A.R., Yaninek J.S., Hanna R. 2007b. Phytoseiid mites of the tribes Afroseiulini, Kampimodromini and Phytoseiulini, and complementary notes on mites of the tribes Euseiini and Neoseiulini (Acari: Phytoseiidae) from sub-Saharan Africa. Zootaxa, 1628: 1-22. doi:10.11646/zootaxa.1628.1.1

Muma M.H. 1955. Phytoseiidae (Acarina) associated with citrus in Florida. Ann. Entomol. Soc. Amer., 48, 262-272. doi:10.1093/aesa/48.4.262

Muma M.H. 1961. Subfamiles, genera, and species of Phytoseiidae (Acarina: Mesostigmata). Fla St. Mus. Bull., 5(7): 267-302

Muma M.H., Denmark H.A. 1970. Phytoseiidae of Florida. Arthropods of Florida and neighbouring land areas, 6. Florida Department of Agriculture and Consumer Services, Division of Plant Industry, Gainesville, USA, 150 pp.

Myers N. 1988. Threatened biotas: hostspots in tropical forests. Environmentalist, 8: 187-208. doi:10.1007/BF02240252

Myers N., Mittermeier R.A., Mittermeier C.G., Da Fonseca G.A., Kent J. 2000. Biodiversity hotspots for conservation priorities. Nature, 403, 853-858. doi:10.1038/35002501

Narayanan E.S., Kaur R.B.N., Ghai S. 1960. Importance of some taxonomic characters in the family Phytoseiidae., with new records and descriptions of species. Proceed. Nat. Inst. Sc. India, 26B: 384-394.

Navasero M.M., Navasero M.V. 2016. Biology of Paraphytoseius orientalis (Narayanan et al.) reared on the broad mite, Polyphagotarsonemus latus (Banks) (Acari: Phytoseiidae, Tarsonemidae) in the Philippines. Philip. Entomol., 30 (1): 21-28.

Nguyen D.T., Dao T.L. 2019. Effect of temperatures and diets on biological characteristics of predatory mite Amblyseius largoensis (Acari: Phytoseiidae). Sci. Technol. J. Agric. Rural Dev., 11: 66-72.

Nguyen D.T., De Clercq P., 2018. Some morphological and biological characters of predatory mite Paraphytoseius cracentis (Acari: Phytoseiidae) reared on two different preys. Vietnam J. Agric. Sci., 16 (2): 95-104 (in Vietnamese).

Nguyen D.T., Than A.T., Jonckeere W., Nguyen V.H., Van Leeuwen T., De Clercq P. 2019a. Life tables and feeding habits of Proprioseiopsis lenis (Acari: Phytoseiidae) and implications for its biological control potential in Southeast Asia. Syst. Appl. Acarol., 24 (5): 857-865. doi:10.11158/saa.24.5.9

Nguyen T.P.T., Tran N.V., Tran T.T.A. 2016. Species occurrence of phytophagous and predatory mites (Acari: Tetranychidae, Phytoseiidae) on fruit vegetables in Ho Chi Minh City, Vietnam. J. Acarol. Soc. Japan, 25(S1): 133-136. doi:10.2300/acari.25.Suppl\_133

Nguyen V.H., Jonckheere W., Nguyen D.T., Moraes G.J. de, Van Leeuwen T., De Clercq P. 2019b. Phytoseiid mites prey effectively on thrips eggs: evidence from predation trials and molecular analyses. Biological Control, 137: 1-7. doi:10.1016/j.biocontrol.2019.104012

Nusartlert N., Vichitbandha P., Baker G., Chandrapatya A. 2011. Pesticide-induced mortality and prey dependent life history of the predatory mite Neoseiulus longispinosus (Acari: Phytoseiidae). Trends in Acarology. Netherlands, Springer: 495-498. doi:10.1007/978-90-481-9837-5\_83

Oliveira D.C., Charanasri V., Kongchuensin M., Konvipasruang P., Chandrapatya A., Moraes G.J. de. 2012. Phytoseiidae of Thailand (Acari: Mesostigmata), with a key for their identification. Zootaxa, 3453: 1-24. doi:10.11646/zootaxa.3453.1.1

Prasad, V. (1968b) Some phytoseiid mites from Hawaii. Annals of the Entomological Society of America, 61, 1459–1462

Pritchard A.E., Baker E.W. (1962) Mites of the family Phytoseiidae from Central Africa, with remarks on the genera of the world. Hilgardia; 33(7): 205-309. doi:10.3733/hilg.v33n07p205

Quilici S., Kreiter S., Ueckermann E. A., Vincenot D. 1997. Predatory mites (Acari) from various crops on Réunion Island. Intern. J. Acarol., 23(4): 283-291. doi:10.1080/01647959708683578

Quilici S., Ueckermann E. A., Kreiter S., Vayssières J.-F. 2000. Phytoseiidae (Acari) of La Réunion Island. Acarologia, 41(1-2): 97-108.

Reis P.R., Teodoro A.V., Pedro Neto M., Da Silva E.A. 2007. Life history of Amblyseius herbicolus (Chant) (Acari: Phytoseiidae) on coffee plants. Neotrop. Entomol., 36(2): 282-287. doi:10.1590/S1519-566X2007000200016

Ribaga C. (1904) Gamasidi planticoli. Riv. Patol. Veg., 10: 175-178.

Rodriguez-Cruz F.A., Venzon M., Pinto C.M.F. 2013. Performance of Amblyseius herbicolus on broad mites and on castor bean and sunnhemp pollen. Exp. Appl. Acarol., 60: 497-507. doi:10.1007/s10493-013-9665-y

Rowell H.J., Chant D.A., Hansell R.I.C. 1978. The determination of setal homologies and setal patterns on the dorsal shield in the family Phytoseiidae (Acarina: Mesostigmata). Can. Entomol., 110: 859-876. doi:10.4039/Ent110859-8

Ryu M.O., Lee W.K. 1992. Ten newly recorded phytoseiid mites (Acarina: Phytoseiidae) from Korea. Korean J. Entomol., 22(1): 23-42. doi:10.2476/asjaa.40.23

Schicha E. 1975. A new predacious species of Amblyseius Berlese from strawberry in Australia, and A. longispinosus (Evans) redescribed (Acari: Phytoseiidae). J. Austral. Entomol. Soc., 14: 101-106. doi:10.1111/j.1440-6055.1975.tb02010.x

Schicha E. 1982. A new species of Amblyseius Berlese from the New Hebrides with notes on closely related species from Australia, Japan and China (Acari: Phytoseiidae). Austral. Entomol. Mag., 9(2-3): 33-38.

Schicha E. 1987. Phytoseiidae of Australia and neighbouring areas. Indira Publishing House, West Bloomfield, Michigan, USA, 187 pp.

Schicha E., Corpuz-Raros L.A. 1985. Contribution to the knowledge of the genus Paraphytoseius Swirski and Shechter (Acarina: Phytoseiidae). Intern. J. Acarol., 11(2): 67-73. doi:10.1080/01647958508683398

Schicha E., Corpuz-Raros L.A. 1992. Phytoseiidae of the Philippines. Indira Publishing House, West Bloomfield, Michigan, USA, 190 pp.

Schicha E., Gutierrez J. 1985. Phytoseiidae of Papua New Guinea, with three new species, and new records of Tetranychidae (Acari). Intern. J. Acarol., 11(3): 173-181. doi:10.1080/01647958508683412

Schuster R.O., Pritchard A.E. 1963. Phytoseiid mites of California. Hilgardia, 34: 191-285. doi:10.3733/hilg.v34n07p191

Shibao M., Ehara S., Hosomii A., Tanaka H. 2004. Seasonal fluctuation in population density of phytoseiid mites and the yellow tea thrips, Scirtothrips dorsalis Hood (Thysanoptera: Thripidae) on grape and predation of the thrips by Euseius sojaensis (Ehara) (Acari: Phytoseiidae). Appl. Entomol. Zool., 39, 727-730. doi:10.1303/aez.2004.727

Swirski E., Golan Y. 1967. On some phytoseiid mites (Acarina) from Luzon Island (Phillipines). Israel J. Agric. Res., 17: 225-227.

Swirski E., Shechter R. 1961. Some phytoseiid mites (Acarina: Phytoseiidae) of Hong-Kong, with a description of a new genus and seven new species. Israel J. Agric. Res., 11: 97-117.

Tixier M.-S., Kreiter S. 2009. Arthropods in biodiversity hotspots: the case of the Phytoseiidae (Acari: Mesostigmata). Biodivers. Conserv., 18:507-527. doi:10.1007/s10531-008-9517-y

Tseng Y.H. 1976. Systematics of the mite family Phytoseiidae from Taiwan, with a revised key to genera of the world (II). J. Agric. Assoc. China, N. Ser., 94: 85-128.

Tseng Y.H. 1983. Further study on phytoseiid mites from Taiwan (Acarina: Mesostigmata). Chin. J. Entomol., 3: 33-74.

Ueckermann E.A., Loots G.C. 1987. Two species of Amblyseius (Paraphytoseius) Swirski & Shechter from Africa (Acari: Phytoseiidae). Acarologia, 28(3): 221-226.

Ueckermann E.A., Zannou I.D., Moraes G.J. de, Oliveira A.R. de, Hanna R., Yaninek J.S. 2007. Phytoseiidd mites of the subfamily Phytoseiinae (Acari: Phytoseiidae) from sub-Saharan Africa. Zootaxa, 1658: 1-20. doi:10.11646/zootaxa.1658.1.1

van der Merwe G.G. 1968. A taxonomic study of the family Phytoseiidae (Acari) in South Africa with contributions to the biology of two species. Entomol. Mem., South Africa Dep. Agric. Techn. Serv., 18: 1-198.

van der Merwe G.G., Ryke P.A.J. 1963. Key characteristics of the predacious family Phytoseiidae with special reference to the genus Amblyseius Berlese (Acarina). J. Entomol. Soc. South Africa, 26, 82-93.

Vichitbandha P., Chandrapatya A. 2009. Life history of Amblyseius cinctus Corpuz and Rimando (Acari: Phytoseiidae) on broad mites larvae, Polyphagotarsonemus latus (Banks) (Acari: Tarsonemidae) and its predation response on broad mites at different predators: prey ratios in laboratory and greenhouse conditions. J. Intern. Soc. Southeast Asian Agric. Sci.

Vitzthum H. von. 1941. Acarina. In: Bronns, H.G. (Ed.), Klassen und Ordnungen des Tierreichs 5, Akademischer Verlag, Leipzig, Germany: 764-767.

Wainstein B.A. 1962. Révision du genre Typhlodromus Scheuten, 1857 et systématique de la famille des Phytoseiidae (Berlese 1916) (Acarina: Parasitiformes). Acarologia, 4: 5-30.

Womersley H. 1954. Species of the subfamily Phytoseiinae (Acarina: Laelaptidae) from Australia. Austral. J. Zool., 2: 169-191. doi:10.1071/ZO9540169

Wu W.N. 1997. A review of taxonomic studies of the genus Phytoseius (Acari: Phytoseiidae) from China. Syst. Appl. Acarol., 2: 149-160. doi:10.11158/saa.2.1.21

Wu W.N., Li Z.Q. 1984. Three new species of the genus Phytoseius from south China (Acarina: Phytoseiidae). Acta Entomol. Sinica, 27(4): 457-461 [in Chinese].

Wu W.N., Ou J.F. 1999. A new species group of the Amblyseius, with descriptions of two new species (Acari: Phytoseiidae) from China. Syst. Appl. Acarol., 4: 103-110. doi:10.11158/saa.4.1.15

Xin J.L., Liang LR., Ke L.S. 1982. Two new species of Phytoseius Ribaga from Yunnan and Guizhou (Acari: Phytoseiidae). Zool. Res., Suppl., 3, 57-60 [in Chinese].

Zack R.E. 1969. Seven new species and records of phytoseiid mites from Missouri (Acarina: Phtyoseiidae). J. Kansas Entomol. Soc., 42(1), 68-80.

Zannou I.D., Moraes G.J. de, Ueckermann E.A., Oliveira A.R., Yaninek J.S., Hanna R. 2007. Phytoseiid mites of the subtribe Amblyseiina (Acari: Phytoseiidae: Amblyseiini) from sub-Saharan Africa. Zootaxa, 1550: 1-47. doi:10.11646/zootaxa.1550.1.1



Comments
Please read and follow the instructions to post any comment or correction.


Article editorial history

Date received:
2019-11-21
Date accepted:
2020-02-11
Date published:
2020-02-28

Edited by:
Faraji, Farid

Creative Commons License
This work is licensed under a Creative Commons Attribution 4.0 International License
2020 Kreiter, Serge; Bopp, Marie-Charlotte; Douin, Martial; Nguyen, Duc Tung and Wyckhuys, Kris

Downloads

 Download article

Download the citation

RIS with abstract
(Zotero, Endnote, Reference Manager, ProCite, RefWorks, Mendeley)
RIS without abstract
(Zotero, Endnote, Reference Manager, ProCite, RefWorks, Mendeley)
BIB
(Zotero, BibTeX)
TXT
(PubMed, Txt)

Article metrics

Number of distinct pdf views
245

Cited by: view citations with
