Two new records of the genus Kampimodromus Nesbitt (Acari: Phytoseiidae) for Turkey with a revised key to the World species

Döker, Ismail1 ; Kazak, Cengiz2 ; Karaca, M. Mete3 and Karut, Kamil4

1✉ Çukurova University, Agricultural Faculty, Plant Protection Department, Acarology Laboratory, 01330 Adana, Turkey
2Çukurova University, Agricultural Faculty, Plant Protection Department, Acarology Laboratory, 01330 Adana, Turkey
3Çukurova University, Agricultural Faculty, Plant Protection Department, Acarology Laboratory, 01330 Adana, Turkey
4Çukurova University, Agricultural Faculty, Plant Protection Department, Acarology Laboratory, 01330 Adana, Turkey

2017 - Volume: 57 Issue: 2 pages: 355-363

https://doi.org/10.1051/acarologia/20164160
ZooBank LSID: B8125099-7FD8-4353-AECB-A31C7A03B8B0

Keywords

Kampimodromus re-description movable digit dentition peritreme length identification key

Abstract

Two species of the genus Kampimodromus Nesbitt, K. keae (Papadoulis and Emmanouel) and K. ragusai Swirski and Amitai are reported for the first time in Turkey. The new records are re-described and illustrated. The male of K. ragusai is described for the first time. The species status of K. keae and K. ragusai as valid species within the genus Kampimodromus is discussed. A revised key to all known species of Kampimodromus is provided.

Introduction

There are 15 nominal species in the genus Kampimodromus Nesbitt, 1951 (Acari: Phytoseiidae) belonging to the sub-family Amblyseiinae (Acari: Mesostigmata). They are characterized by having dorsal setal pattern 10A:8C with 18 pairs of dorsal setae (S4 absent) including sub-laterals r3 and R1 (Chant and McMurtry, 2003). All Kampimodromus species were described from the Western Palearctic region except for K. alettae (Ueckermann and Loots) and K. molle (Ueckermann and Loots) which are known from South Africa (Ueckermann and Loots, 1985). Chant and McMurtry, (2003) postulated that the genus Kampimodromus evolved in the Mediterranean region and spread to other parts of the world from there. Kampimodromus aberrans (Oudemans, 1930) is the most widely distributed species recorded from almost all over Western Palearctic countries and the USA (Demite et al., 2016). However, it is doubtful if all recorded specimens are really K. aberrans.

In this study, K. keae (Papadoulis and Emmanouel, 1991) and K. ragusai Swirski and Amitai, (1997) are re-discovered for the first time after their original descriptions (Papadoulis and Emmanouel 1991; Swirski and Amitai 1997). The unknown male of K. ragusai is described and illustrated for the first time. In addition, an identification key for all known species of the genus Kampimodromus is given.

Materials and methods

Leaf samples were wrapped in paper towel and placed in plastic bags and the latter in an icebox. The samples were examined under stereobinoculer and phytoseiid mites mounted in Hoyer's medium on microscope slides. An Olympus® U-DA drawing tube, was used for the illustrations. The taxonomic system is based on that proposed by Chant and McMurtry, (2007). The setal nomenclature used follow Lindquist and Evans, (1965) as adapted by Rowell et al., (1978). For the organotaxy, Athias-Henriot, (1975; 1977) was followed; for the ventral pores and leg chaetotaxy Evans, (1963) and Evans and Till, (1979); and Wainstein, (1973) for the spermatheca. The dorsal and ventral setal pattern notations follow Chant and Yoshida-Shaul, (1989; 1991; 1992). All measurements are given in micrometers (μm) and presented as the mean followed by the range in parenthesis.

Results
Kampimodromus keae (Papadoulis and Emmanouel)

(Figure 1)

Figure 1. Kampimodromus keae (Papadoulis and Emmanouel) (Female): A – Dorsal shield; B – Ventral idiosoma; C – Chelicera; D – Spermathecae; E – Leg IV.

Amblyseius keae Papadoulis and Emmanouel, 1991: 265.

Kampimodromus keae (Papadoulis and Emmanouel), Chant and McMurtry, 2003: 196; Tixier et al., 2003: 356; 2008: 133; Ragusa Di Chiara and Tsolakis, 1994: 312; Papadoulis et al. 2009: 45.

Female (Fig. 1) (n=1)

Dorsum (Fig. 1A) — Dorsal setal pattern 10A:8C (r3 and R1 off shield). Dorsal shield oval with waist, sclerotized, with a few striations posterolaterally and reticulated area between setae j6 and Z4. Bearing four pairs of solenostomes (gd1, gd2, gd6 and gd9); gd1 and gd9 rounded, gd2 prominent, gd6 crescentic; muscle-marks (sigilla) visible on podosoma, length of dorsal shield (j1-J5) 280, width (distance between bases of s4) 118 (distance between bases of S2) 133. Setae, j4, j5, j6, J2, J5, z5, and Z1 are smooth, others are serrated. Measurements of dorsal setae as follows: j1 15, j3 28, j4 15, j5 15, j6 18, J2 20, J5 5, z2 28, z4 28, z5 15, Z1 20, Z4 30, Z5 40, s4 33, S2 33, S5 23, r3 30 and R1 23.

Peritreme — Extending to level of setae z4.

Venter (Fig. 1B) — Ventral setal pattern 14:JV-3:ZV. Sternal shield smooth, lightly sclerotized, with three pairs of setae (ST1, ST2 and ST2) and two pairs of pores (pst1 and pst2); length (ST1-ST3) 49, width (distance between bases of ST2) 46; metasternal setae ST4 and a pair of pores (pst3) on metasternal shields. Genital shield smooth; width at level of genital setae (ST5) 43. Ventrianal shield elongate with waist at level of JV2; with a few striations; bearing three pairs of pre-anal setae (JV1, JV2 and ZV2), a pair of para-anal (Pa) and a post-anal seta (Pst); a pair of small pores (gv3) posterior to JV2 (distance between the gv3 pores 20) and muscle-marks posterolaterally. Length of ventrianal shield 88, width 48. Setae JV4, JV5, ZV1, ZV3, and eight pairs of pores on integument surrounding ventrianal shield. Setae JV5 serrated, much longer than other ventral setae, 25 in length.

Chelicera (Fig. 1C) — Fixed digit 25 long with two apical teeth and pilus dentilis; movable digit 25 long with one tooth.

Spermatheca (Fig. 1D) — Calyx cup-shaped 5 in length; with atrium small nodular, major duct long, minor duct not visible.

Legs (Fig. 1E) — Length of legs (base of coxae to base of claws) as follows: leg I 230, leg II 195, leg III 185, leg IV 245. Genu II, III, and IV with eight, seven and eight setae, respectively. Leg IV with one pointed macrosetae, StIV 15.

Material examined — One female, 16 June 2016, Kadincik Valley National Park, Mersin Province on Quercus sp. (Fagaceae).

World Distribution — Greece (Papadoulis and Emmanouel 1991; Papadoulis et al., 2009) and Turkey (this study).

Remarks — Kampimodromus keae is a new record for Turkish fauna. Turkish specimen well fit original description and re-descriptions of K. keae (Papadoulis and Emmanouel, 1991; Ragusa Di Chiara and Tsolakis, 1994; Papadoulis et al., 2009). However, the length of setae Z5 and r3 in the type material are, 34 and 36 oppose to 40 and 30 in Turkish specimen, respectively. According to Tixier et al., (2003), K. keae is suspected to be junior synonym of K. aberrans as they only differ, in the presence and absence of a tooth on movable digit (MD) of the chelicera, respectively (Tixier et al., 2003; Chant and McMurtry, 2003). Kampimodromus ragusai and K. keae are also grouped together in an identification key provided by Tixier et al., (2008). However, it should be noted that K. keae has shorter peritremes compared to both K. aberrans and K. ragusai (Papadoulis and Emmanouel, 1991; Ragusa Di Chiara and Tsolakis, 1994). According to our three years collection, K. ragusai was never found together with neither K. keae nor any other phytoseiid species (see collection details of K. ragusai). But, K. keae was found together with a large population of Typhloseiulus peculiaris (Kolodochka, 1980) on Quercus sp. As the peritreme length did not vary in the examined specimens of K. ragusai, we consider them as two distinct species. But, nothing is known whether peritreme length is a reliable character for separation of species in the genus Kampimodromus. Therefore, it should be validated by molecular studies.

Kampimodromus ragusai Swirski and Amitai

(Figure 2)

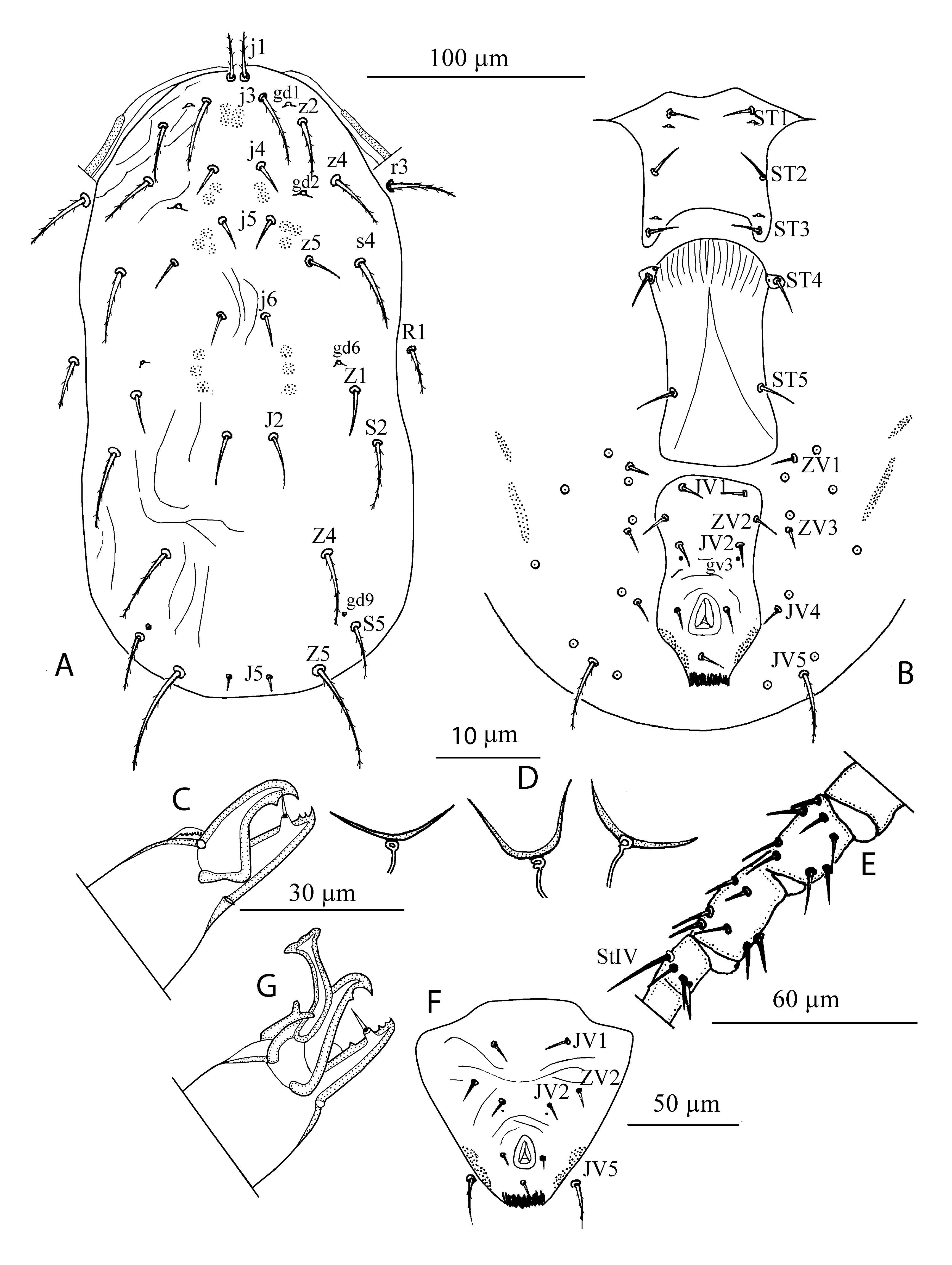

Figure 2. Kampimodromus ragusai Swirski and Amitai, (Female): A – Dorsal shield; B – Ventral idiosoma; C – Chelicera; D – Spermathecae; E – Leg IV. (Male); F – Ventrianal shield; G – Chelicera.

Kampimodromus ragusai Swirski and Amitai, 1997: 3; Swirski et al., 1998: 108; Chant and McMurtry, 2003: 196; Tixier et al., 2003: 356; 2008: 133.

Female (Fig. 2) (n=10)

Dorsum (Fig. 2A) — Dorsal setal pattern 10A:8C (r3 and R1 off shield). Dorsal shield oval with waist, sclerotized, with a few striations, bearing four pairs of solenostomes (gd1, gd2, gd6 and gd9); first three are crescentic and gd9 is rounded; muscle-marks (sigilla) visible, mostly on podosoma, length of dorsal shield (j1-J5) 290 (288 – 293), width (distance between bases of s4) 119 (118 – 120) (distance between bases of S2) 129 (128 – 130). Setae, j4, j5, j6, J2, J5, z5, and Z1 are smooth, others are serrated. Measurements of dorsal setae as follows: j1 19 (18 – 20), j3 29 (28 – 30), j4 14 (13 – 15), j5 14 (13 – 15), j6 14 (13 – 15), J2 21 (20 – 23), J5 5, z2 31 (30 – 33), z4 30 (28 – 33), z5 14 (14 – 15), Z1 19 (18 – 20), Z4 41 (40 – 43), Z5 49 (48 – 50), s4 34 (33 – 35), S2 39 (38 – 40), S5 21 (20 – 23), r3 36 (35 – 38) and R1 26 (25 – 28).

Peritreme — Extending to level of setae z2.

Venter (Fig. 2B) — Ventral setal pattern 14:JV – 3:ZV. Sternal shield smooth, lightly sclerotized, with three pairs of setae (ST1, ST2 and ST2) and two pairs of pores (pst1 and pst2); length (ST1-ST3) 51 (50 – 53), width (distance between bases of ST2) 54 (53 – 55); metasternal setae ST4 and a pair of pores (pst3) on metasternal shields. Genital shield smooth; width at level of genital setae (ST5) 46 (45 – 48). Ventrianal shield elongate with waist at level of JV2; with a few striations; bearing three pairs of pre-anal setae (JV1, JV2 and ZV2), a pair of para-anal (Pa) and a post-anal setae (Pst); a pair of small pores (gv3) posterior to JV2 (distance between the gv3 pores 29) and muscle-marks posterolaterally. Length of ventrianal shield 91 (90 – 93), width 51 (50 – 53). Setae JV4, JV5, ZV1, ZV3, and eight pairs of pores on integument surrounding ventrianal shield. Setae JV5 serrated, much longer than other ventral setae, 31 (30 – 33) in length.

Chelicera (Fig. 2C) — Fixed digit 23 (22 – 25) long with two apical teeth and pilus dentilis; movable digit 24 (24 – 25) long with one tooth.

Spermatheca (Fig. 2D) — Calyx cup-shaped 6 (5 – 8) in length; with atrium small nodular, major duct long, minor duct not visible.

Legs (Fig. 2E) — Length of legs (base of coxae to base of claws) as follows: leg I 236 (235 – 238), leg II 191 (190 – 193), leg III 184 (183 – 185), leg IV 244 (243 – 245). Genu II, III, and IV with eight, seven and eight setae, respectively. Leg IV with one pointed macrosetae, StIV 19 (18 – 20).

Male (Fig. 2) (n=5) Similar to female. But, dorsal shield is slightly reticulated.

Dorsum — Dorsal setal pattern 10A:8C (r3 off shield, R1 on shield). Dorsal shield oval, sclerotized, reticulated, bearing four pairs of solenostomes (gd1, gd2, gd6 and gd9); all pores prominent; gd2 is the largest. Length of dorsal shield (j1-J5) 209 (208 – 210), width (distance between bases of s4) 99 (98 – 100) and (distance between bases of S2) 101 (100 – 103). Serrations of the setae as in female. Measurements of dorsal setae as follows: j1 16 (15 – 18), j3 37 (36 – 39), j4 20 (19 – 21), j5 22 (21 – 24), j6 24 (23 – 25), J2 32(30 – 33), J5 7 (5 – 8), z2 35 (34 – 36), z4 40 (39 – 42), z5 22 (21 – 23), Z1 32 (31 – 33), Z4 37 (36 – 38), Z5 39 (38 – 40), s4 44 (43 – 45), S2 42 (40 – 43), S5 16 (15 – 18), r3 36 (35 – 38) and R1 26 (25 – 28).

Peritreme — Extending to level of setae z2.

Venter (Fig. 2F) — Ventral setal pattern 11:JV – 3,4: ZV – 1,3. Sternogenital shield smooth, lightly sclerotized, with five pairs of setae (ST1, ST2, ST3, ST4 and ST5) and three pairs of crescentic pores. Ventrianal shield triangular, with striations, bearing three pairs of pre-anal setae ( JV1, JV2 and ZV2), a pair of para-anal (Pa) and a post-anal setae (Pst); a pair of small pores (gv3) is present posterior to JV2; muscle-marks, posterolaterally. Length of ventrianal shield 89 (86 – 90), width 100 (99 – 103). Setae JV5 serrated, much longer than other ventral setae, 19 (20 – 21) in length.

Chelicera (Fig. 2G) — Fixed digit with three teeth and pilus dentilis; two apically and the other behind pilus dentilis; movable digit with one tooth, spermatodactyl with a strong toe and an opposing heel. Foot 15 (14 – 16) long, (from basal attachment point to tip of toe).

Legs — Genu II, III, and IV with eight, seven and eight setae, respectively. Leg IV with one pointed macroseta, StIV 19 (18 – 20).

Material examined — 35 females and one male, 2 November 2014; 18 females and one male, 10 October 2015 associated with tydeid mites (Acari: Tydeidae); 21 females and two males, 17 March 2016; 10 females and one male 7 June 2016, associated with tydeid and tetranychid mites Tetranychus sp. (Acari: Tetranychidae), near Sunturas waterfall, Hangedigi town, Mersin Province on Quercus cerris (Fagaceae).

World Distribution — Israel (Swirski and Amitai, 1997) and Turkey (this study).

Remarks — Kampimodromus ragusai is a new record for Turkish fauna. The male K. ragusai is described for the first time in this study. Based on female, Turkish specimens well fit original description of K. ragusai given by Swirski and Amitai, (1997). However, the length of setae Z4, Z5 and S5 in the type material are 30, 38 and 13 oppose to 41, 49 and 21 in Turkish specimens, respectively. As in K. keae the only difference between K. ragusai and K. aberrans is also the presence and absence of a tooth on MD of the chelicera, respectively, therefore former was suspected to be junior synonym of the latter (Tixier et al., 2003; Chant and McMurtry, 2003). However, as suggested by Tixier et al., (2008), MD dentition is a reliable character for discrimination between Kampimodromus species that have similar numbers of solenostomes on the dorsal shield. In addition, all 84 females of the Turkish specimens of K. ragusai have one tooth on MD. These two species further differ in that the fixed digit (FD) of the male of K. aberrans bears two apical teeth (Ragusa Di Chiara and Tsolakis, 1994; Arutunjan, 1977) while that of the male of K. ragusai bears three teeth (two apically and the other behind the pilus dentilis). Therefore, we consider the presence of a tooth on MD of the female and presence of an additional tooth behind pilus dentilis on FD of the male K. ragusai as reliable characters to separate it from K. aberrans. Swirski and Amitai, (1997) reported that Genu II and IV each have eight setae, rarely seven setae. All the female Turkish specimens have eight setae on genu II and IV.

Notes on Identification Key

Ragusa Di Chiara and Tsolakis, (1994) provided first identification key for the genus Kampimodromus with eight species that were known at that time. Tixier et al. (2008) provided second key after confirming that movable digit dentition is a useful character. In addition to the number of solenostomes and movable digit dentition, the peritreme length should also be used for species diagnosis, as discussed earlier. Kampimodromus elongatus (Oudemans, 1930) was synonymized with K. aberrans by Chant, (1955) and Ragusa Di Chiara and Tsolakis, (1994). As suggested by Chant and McMurtry (2003), we treated K. elongatus as a valid species due to the presence of sublateral setae R1 on dorsal shield. Kampimodromus adrianae Ferragut & Peña-Estévez 2003, and K. vitis (Oudemans, 1930) are also considered junior synonyms of K. hmiminai McMurtry Bounfour and K. aberrans, respectively (Chant, 1955; Tixier et al. 2006).

Key to known species of the genus Kampimodromus Nesbitt

1. Six pairs of solenostomes on dorsal shield; one pair of preanal setae on ventrianal shield
...... 2

— Less than six pairs of solenostomes on dorsal shield; two or three pairs of preanal setae on ventrianal shield
...... 3

2. Preanal solenostomes present
...... K. florinensis Papadoulis, Emmanouel and Kapaxidi

— Preanal solenostomes absent
...... K. hmiminai McMurtry and Bounfour

3. Three pairs of solenostomes on dorsal shield
...... K. judaicus (Swirski and Amitai)

— Five or four pairs of solenostomes on dorsal shield
...... 4

4. Four pairs solenostomes on dorsal shield
...... 5

— Five pairs of solenostomes on dorsal shield
...... 9

5. Movable digit of chelicera smooth
...... 6

— Movable digit of chelicera with one tooth
...... 8

6. Sub-lateral setae R1 inserted on dorsal shield
...... K. elongatus (Oudemans)

— Sub-lateral setae R1 on interscutal membrane
...... 7

7. Preanal solenostomes present; Macroseta on basitarsus IV short about 20 μm
...... K. aberrans (Oudemans)

— Preanal solenostomes absent; Macroseta on basitarsus IV longer, about 30 μm
...... K. molle (Ueckermann and Loots)

8. Peritreme short, extending to level of setae z4
...... K. keae (Papadoulis and Emmanouel)

— Peritreme longer, extending to level of setae z2
...... K. ragusai Swirski and Amitai

9. Ventrianal shield with two pairs of preanal setae
...... K. alettae (Ueckermann and Loots)

— Ventrianal shield with three pairs of preanal setae
...... 10

10. Movable digit of chelicera with one tooth
...... 11

— Movable digit of chelicera smooth
...... 13

11. Peritreme short extending to level of sub-lateral setae r3
...... K. echii Ferragut and Peña-Estévez

— Peritreme longer, at least extending to level z2
...... 12

12. Macroseta on basitarsus IV pointed apically; peritreme extending to level between setae j3-z2
...... K. coryli Meshkov

— Macroseta on basitarsus IV knobbed apically; peritreme extending to setae level of z2
...... K. langei Wainstein and Arutunjan

13. Dorsal setae J2 shorter than 25 μm
...... K. corylosus Kolodochka

— Dorsal setae J2 longer than 30 μm
...... 14

14. Both dorsal setae S5 and macrosetae on basitarsus IV smooth
...... K. karadaghensis Kolodochka

— Both dorsal setae S5 and macrosetae on basitarsus IV slightly serrate
...... K. ericinus Ragusa Di Chiara and Tsolakis

Acknowledgements

This study was funded by Scientific Research Foundation of Çukurova University, Project Number: FBA-2015-4939. The authors would like to thank anonymous reviewers for their valuable suggestions on an early version of the manuscript. A part of this paper was presented at 8th Symposium of the European Association of Acarologists and appears in the abstract book of that meeting.

References

Arutunjan E.S. 1977 — Identification manual of phytoseiid mites of agricultural crops of the Armenian SSR. Akademiya Nauk Armyanskoi SSR, — Erevan, Armenia: Zoologicheskii Institute. pp. 177. [in Russian/ Armenian].

Athias-Henriot C. 1975 — Nouvelles notes sur la Amblyseiini. II. Le releve organotaxique de la face dorsale adulte (Gamasides Protoadenique, Phytoseiidae) — Acarologia, 17: 20-29.

Athias-Henriot C. 1977 — Nouvelles notes sur la Amblyseiini. III. Sur la genre Cydnodromus: redefinition, composition (Parasitiformes, Phytoseiidae) — Entomophaga, 22: 61-73. doi:10.1007/BF02372991

Chant D.A. 1955 — Notes on mites of the genus Typhlodromus Scheuten, 1857 (Acarina: Laelaptidae), with descriptions of the males of some species and the female of a new species — Can. Entomol., 87: 496-503. doi:10.4039/Ent87496-11

Chant D.A., McMurtry J.A. 2003 — A review of the subfamily Amblyseiinae Muma (Acari: Phytoseiidae): Part II. The tribe Kampimodromini Kolodochka — Int. J. Acarol., 29: 179-224. doi:10.1080/01647950308684331

Chant D.A., McMurtry J.A. 2007 — Illustrated keys and diagnoses for the genera and subgenera of the Phytoseiidae of the world (Acari: Mesostigmata) — West Bloomfield: Indira Publishing House. pp. 219.

Chant D.A., Yoshida-Shaul E. 1989 — Adult dorsal setal patterns of the family Phytoseiidae (Acari: Gamasina) — Int. J. Acarol., 15: 219-233. doi:10.1080/01647958908683852

Chant D.A., Yoshida-Shaul E. 1991 — Adult ventral setal patterns in the family Phytoseiidae (Acari: Gamasina) — Int. J. Acarol., 17: 187-199. doi:10.1080/01647959108683906

Chant D.A., Yoshida-Shaul E. 1992 — Adult idiosomal setal patterns in the family Phytoseiidae (Acari: Gamasina) — Int. J. Acarol., 18: 177-193. doi:10.1080/01647959208683949

Demite P.R., Moraes G.J. de, McMurtry J.A. Denmark H.A., Castilho R. C. 2016 — Phytoseiidae Database [Internet] — [14 June 2016]. Available from: ( www.lea.esalq.usp.br/phytoseiidae/ )

Evans G.O. 1963 — Observations on the chaetotaxy of the legs in the free-living Gamasina (Acari: Mesostigmata) — Bull. Brit. Mus. (Nat. Hist.) Zool. 10: 277-303. doi:10.5962/bhl.part.20528

Evans G.O., Till W.M. 1979 — Mesostigmatic mites of Britain and Ireland (Chelicerata: Acari-Parasitiformes): An introduction to their external morphology and classification — Trans. Zool. Soc. London, 35: 139-270. doi:10.1111/j.1096-3642.1979.tb00059.x

Ferragut F., Peña-Estévez M.A. 2003 — Phytoseiid mites of the Canary Islands (Acari: Phytoseiidae): 1. Gran Canaria Island — Int. J. Acarol., 29: 149-170. doi:10.1080/01647950308683654

Kolodochka L.A. 1980 — New phytoseiid mites (Parasitiformes: Phytoseiidae) from Moldavia, USSR — Vestn. Zoologii, 4: 39-45 [in Russian].

Lindquist E.E., Evans G.O. 1965 — Taxonomic concepts in the Ascidae, with a modified setal nomenclature for the idiosoma of the Gamasina (Acarina: Mesostigmata) — Mem. Entomol. Soc. Can., 47: 1-64. doi:10.4039/entm9747fv

Nesbitt H.H.J. 1951 — A taxonomic study of the Phytoseiidae (Family Laelaptidae) predaceous upon Tetranychidae of economic importance — Zool. Verhandel., 12: 64 pp.+ 32 plates.

Oudemans A.C. 1930 — Acarologische Aanteekeningen. CI. — Entomol. Ber., 8: 48-53.

Papadoulis G.Th., Emmanouel N.G. 1991 — Two new species of Amblyseius Berlese (Acari: Phytoseiidae) from Greece — Int. J. Acarol., 17: 265-269. doi:10.1080/01647959108683917

Papadoulis G.Th., Emmanouel N.G., Kapaxidi E.V. 2009 — Phytoseiidae of Greece and Cyprus (Acari: Mesostigmata) — West Bloomfield: Indira Publishing House. pp. 200.

Ragusa Di Chiara S., Tsolakis H. 1994 — Revision of the genus Kampimodromus Nesbitt, 1951 (Parasitiformes, Phytoseiidae), with a description of a new species — Acarologia, 35: 305-322.

Rowell H.L., Chant D.A., Hansell R.I.C. 1978 — The determination of setal homologies and setal patterns on the dorsal shield in the family Phytoseiidae (Acarina: Mesostigmata) — Can. Entomol., 110: 859-876. doi:10.4039/Ent110859-8

Swirski E., Amitai S. 1997 — Notes on phytoseiid mites (Mesostigmata: Phytoseiidae) of Mt. Carmel (Israel), with descriptions of two new species — Isr. J. Entomol., 31: 1-20.

Swirski E., Ragusa Di Chiara S., Tsolakis H. 1998 — Keys to the phytoseiid mites (Parasitiformes, Phytoseiidae) of Israel — Phytophaga, 8: 85-154.

Tixier M.-S., Kreiter S., Cheval B., Auger P. 2003 — Morphometric variation between populations of Kampimodromus aberrans (Oudemans) (Acari: Phytoseiidae): implications for the taxonomy of the genus — Invertebr. Syst., 17: 349-358. doi:10.1071/IS02004

Tixier M.-S., Kreiter S., Ferragut F., Cheval B. 2006 — The suspected synonymy of Kampimodromus hmiminai and Kampimodromus adrianae (Acari: Phytoseiidae): morphological and molecular investigations — Can. J. Zool., 84: 1216-1222. doi:10.1139/z06-108

Tixier M.-S., Kreiter S., Croft B.A., Cheval B. 2008 — Kampimodromus aberrans (Acari: Phytoseiidae) from the USA: morphological and molecular assessment of its density — Bull. Entomol. Res., 98: 125-134. doi:10.1017/S0007485307005457

Ueckermann E.A., Loots G.C. 1985 — The African species of the subgenus Kampimodromus Nesbitt (Acarina: Phytoseiidae) — Phytophylactica, 17: 195-200.

Wainstein B.A. 1973 — On the structure of some organs of Phytoseiidae (Parasitiformes) important for taxonomy — Zool. Zhurnal 52: 1871-1872.
